High Accuracy Led Tube Mounter Machine for LED Light Production Approx.1340KG Weight and Mounting Components 0201

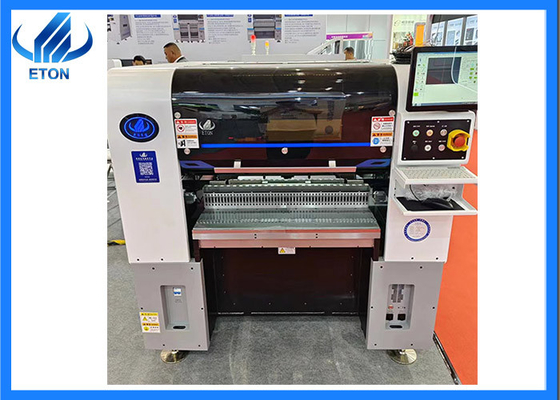

The YT10S Pick and Place Machine offers a range of advanced features designed to enhance the efficiency and flexibility of SMT (Surface Mount Technology) production lines. Here are the key characteristics and application scope based on the provided details:

Key Features:

1. High-Speed Performance: The YT10S achieves a placement speed of up to 48,000 CPH (components per hour) under optimal conditions. This is a 25% increase in placement capability compared to traditional machines due to the integration of high-end magnetic linear motors and a modular placement head.

2. Advanced Motion System: The X, Y, and Z axes are driven by self-developed high-end magnetic linear motors, which provide enhanced speed, accuracy, and stability in component placement.

3. Modular Placement Head: The machine features a modular placement head with 10 suction nozzles per head, offering precision placement for a wide range of component sizes, from 0201 to 35x35mm packages. The head is lightweight, and each set of Z axes is independently controlled, allowing for high precision.

4. Vision System: The YT10S is equipped with an advanced vision system, including a head flight camera and dual mark cameras, for high-speed, high-precision recognition. This ensures accurate alignment and placement even for components with complex shapes.

5. Flexible PCB Handling: The machine can handle various PCB sizes, from 50x50mm to 500x450mm (with an optional extension to 1200x450mm), and supports flexible production by customizing the feeder and tray systems.

6. Automated Features: The YT10S supports automatic nozzle replacement (optional), and it has a vacuum sensing device on each placement head to improve reliability and stability.

7. Customization and Options: There are various options available for customization, including IC backpack, vibrating bowls, manual IC trays, and auto feeder carts. The machine can also be configured for different production modes to meet specific needs.

8. Intelligent Software: The system is powered by ETON's self-developed software, featuring AI deep learning and automatic optimization functions. It supports offline programming, reducing setup time and enhancing operational efficiency.

9. Support for Multiple Components: The machine is versatile in terms of the types of components it can handle, supporting 0201 to 35x35mm tape reel packages, IC tray feeders, and more.

Application Scope:

The YT10S is suitable for a wide range of industries that require high-speed, high-precision assembly of small to medium-sized components. Common applications include:

• Consumer Electronics: Assembly of PCBs for smartphones, tablets, and wearables.

• Automotive: Integration of electronic components in automotive control units, sensors, and infotainment systems.

• Industrial Electronics: Manufacturing of components for industrial automation and control systems.

• Medical Devices: Precise assembly of medical electronics where reliability is critical.

• Communication Devices: High-precision assembly for communication equipment, including network devices and telecom equipment.

This machine's flexibility, speed, and precision make it ideal for high-volume production environments where rapid changeover and customization are essential.

For those researching pick-and-place machines for modern electronics manufacturing, keywords such as "high-speed SMT machine," "advanced placement head," "flexible PCB handling," and "AI-powered assembly system" are likely to lead to similar advanced solutions.
