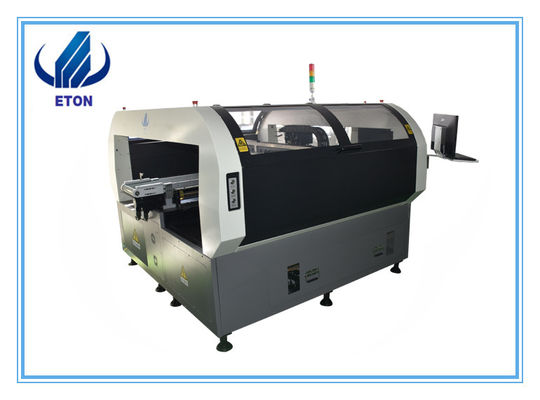

Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously

Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously
Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously

Large Image :  Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HT-T7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $85000 - 86000 / Unit
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: 2200*2850*1550 MM Total Weight: 1600 KG
Wire Plate Size: Max 250 MM* Any Length Mounting Speed: 100000 - 150000 CPH
Power: 220 AC 50 HZ No.of Nozzles: 30 PCS
High Light:

led lights manufacturing machine

,

led soldering machine



Company profile

Shenzhen Eton Automation Equipment Co.,Ltd mainly takes professional, efficient and low consumption SMT full- automatic high-speed laminating machine as its responsibility, national high-speed technology enterprise integrating product development,production,sales and service.



Quality Principle:

Quality First, Client-oriented,

Continuous Improvement!

Features

Producing with 2-4 types of materials with high capacity, avaible for 5M, 50M or any length of soft lamp strip continuously. Two model,f 15 nozzles or each mounting part, part A or part B can be mounted separately or synchronously. Global first technology patent: counterfeiting not allowed.

IPC 9850 Capacity:100000-150000 CPH

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0

Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously 0

Technical Parameter

led bulb assembly machine/smt production line

Soft lamp strip Wire plate size 250MM* any length
Wire plate thickness 0.5~5mm
Wire plate clamping Adjustable pressure pneumatic.
  Mounting Mode Group to pick and group to mount
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 60 PCS
No. of nozzles 30 PCS
Feeder type Electronic feeder
Vision System No. of Camera 5 sets of imported camera
  Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 100000-150000CPH(optimum)
Components LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 5 kw
Operating Environment 23℃±3
Conveyor Transmission Belt drive
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor for closed-loop feedback control for X,Y axies







Packing & Shipping

Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously 1



We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.

After Sales Service

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.



Our Client



Long flexible strip(without cable)

Two Model LED Light Production Line High Capacity 15 Nozzles Synchronously 2

Many high speed mounter—one reflow oven.

FAQ

Q: Why choose us ?

We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.

Q: What is your delivery date?

The delivery date is about 15 days after receipt of payment.

Q: What's the credibility of your brand?

Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q:What are the main LED products do our machines for?

There are different machines in our company, and different machines apply to different LED lights and components. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light, power, driver, lens and so on.
