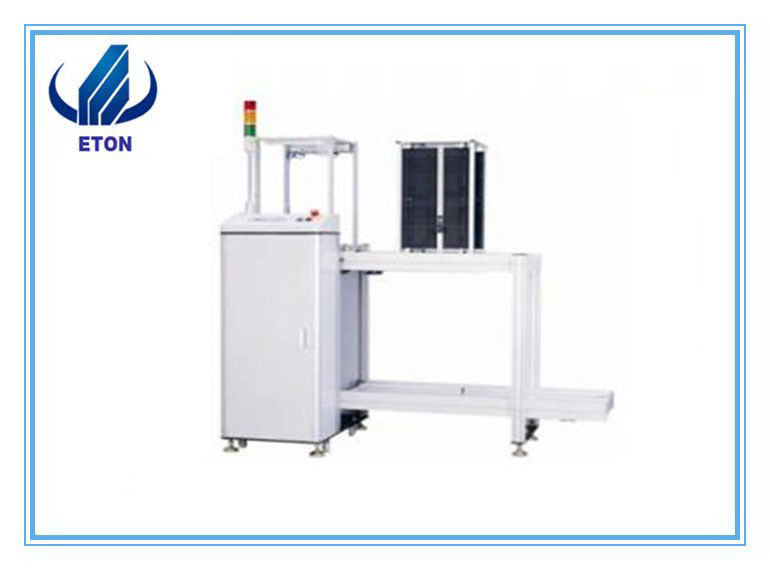

LED PCB Send Board Machine Automatic ET-L330 Pneumatic Clamp Structure 220V 50HZ

LED PCB Send Board Machine Automatic ET-L330 Pneumatic Clamp Structure 220V 50HZ
LED PCB Send Board Machine Automatic ET-L330 Pneumatic Clamp Structure 220V 50HZ LED PCB Send Board Machine Automatic ET-L330 Pneumatic Clamp Structure 220V 50HZ

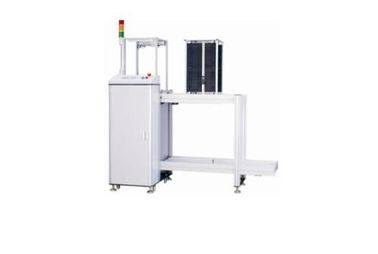

Large Image :  LED PCB Send Board Machine Automatic ET-L330 Pneumatic Clamp Structure 220V 50HZ

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE
Model Number: ET-L330
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3100USD
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 100 Units/ Per Month
Detailed Product Description
Condition: New Name: PCB Loader
Product Name: ET-L330
High Light:

led lights manufacturing machine

,

led light making machine

The SMT board machine is a kind of production equipment used in the SMT production and processing of electronic products. Its main function is to put the unmounted PCB board on the SMT board machine and send it to the suction machine, then the suction board. The machine automatically places the PCB on the track of the solder paste printer and uploads it to the solder paste printer for brush solder paste operation

Item ET-L330 send board machine
Dimension L1400*W860*H1200±30mm
Frame Special aluminum profile guide rail and special thousand bird type plastic chain
Lift 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Transmission motor Taiwan 15W fixed speed motor
Structure Pneumatic clamp structure
Magazine Specifications L460*W400*565mm
Maximum size of PCB L450*W330
Direction Right to left / left to right
Lift platform pitch selection 10,20,30,40
Transmission height H=920±30
Controller Mitsubishi PLC programmable controller
Function Automatically send board
Operation control panel Display control true color touch screen
Pneumatic Components Push plate cylinder position, adjusted by screw
power supply 220V 50HZ
No. of Full load storage board 50 PCS
Gas source 0.4-0.6MPa
Electric control box 1 set

Shenzhen Eton Automation Equipment Co., Ltd established in 2009. Which is national high-tech enterprise. We concentrate on building national brand and provides customers with professional, efficient, low consumption and specializes in R$D, production, sales and service of SMT machines.
