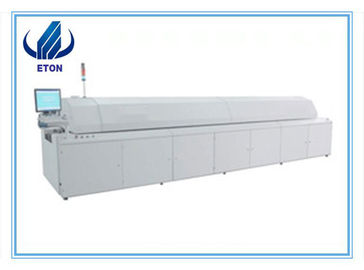

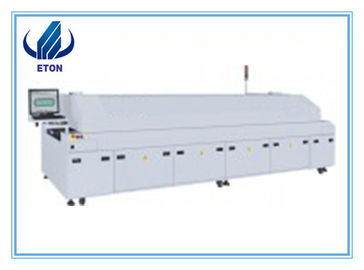

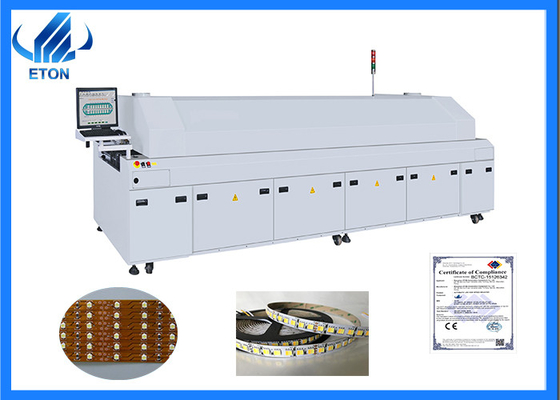

Surface Mount PCB LED Light Production Line ET-R10 Reflow Oven Machine 58KW
SMT is surface mount technology (short for Surface Mount Technology) and is currently the most popular technology and process in the electronics assembly industry.
SMT includes surface mount technology, surface mount equipment, surface mount components, and SMT management. Features: high assembly density, small size and light weight of electronic products. The size and weight of patch components are only about 1/10 of that of traditional plug-in components. After SMT is generally used, the volume of electronic products is reduced by 40%~60%, and the weight is reduced by 60%. %~80%. High reliability and strong anti-vibration ability. The solder joint defect rate is low. High frequency characteristics are good. Reduced electromagnetic and radio frequency interference. Easy to automate and increase productivity. Reduce costs by 30% to 50%. Save materials, energy, equipment, manpower, time, etc.
A whole Automatic SMT line include Automatic printer, conveyor, pick and place machine and reflow oven
So what is the reflow oven?
Due to the need for miniaturization of electronic product PCB boards, chip components have emerged, and conventional soldering methods have been unable to meet the needs. At first, only the reflow soldering process was used in the assembly of hybrid integrated circuit boards. Most of the components to be assembled and soldered were chip capacitors, chip inductors, mounted transistors and diodes. With the development of SMT technology, a variety of SMCs and SMDs have emerged as part of the placement technology. The reflow process technology and equipment have also been developed accordingly. Already applied in almost all electronic products.
| Model | ET-R10 | |
|
Heating System |
Number of heating zones | Up 10/ bottom 10 |
| Number of cooling zones | 2 | |
| Length of heating zones | 3700mm | |
| Heating mode | Hot air | |
| Cooling Mode | Forced air cooling | |
| Exhaust Volume | 10m³/min * 2 exhausts | |
|
Conveyor System |
Max. Width of PCB | 400mm |
| Mesh belt width | 450mm | |
| Transmission Direction | L→R(option: R→L) | |
| Transmission Net Height | 900±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 50-400mm | |
| Conveyor speed | 0-2000mm/min | |
| Auto/manual Lubrication | Standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
|
Control system |
Power supply | 5 line 3 phase 380V 50/60HZ |
| Total power | 58KW | |
| Starting power | 50KW | |
| Normal power consumption | 10KW | |
| Warming time | 20 mins | |
| Temp. setting range | From room temp. To 300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
| Abnormal Alarm | Abnormal temperature (extra-high/extra-low temperature) | |
| Board dropped alarm |
Tower light: Yellow-warming, Green-normal, Red-abnormal |
|
|
General |
Dimension(L*W*H) | 5400*1320*1490mm |
| Weight | 2300kg | |
| Color | Computer gray | |
