Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Name: | SMT Production Line | Application: | SMT PCB Production Line |
| Magazine Specifications: | L355*W320*565mm | Maximum Size Of PCB: | L330*W250 |

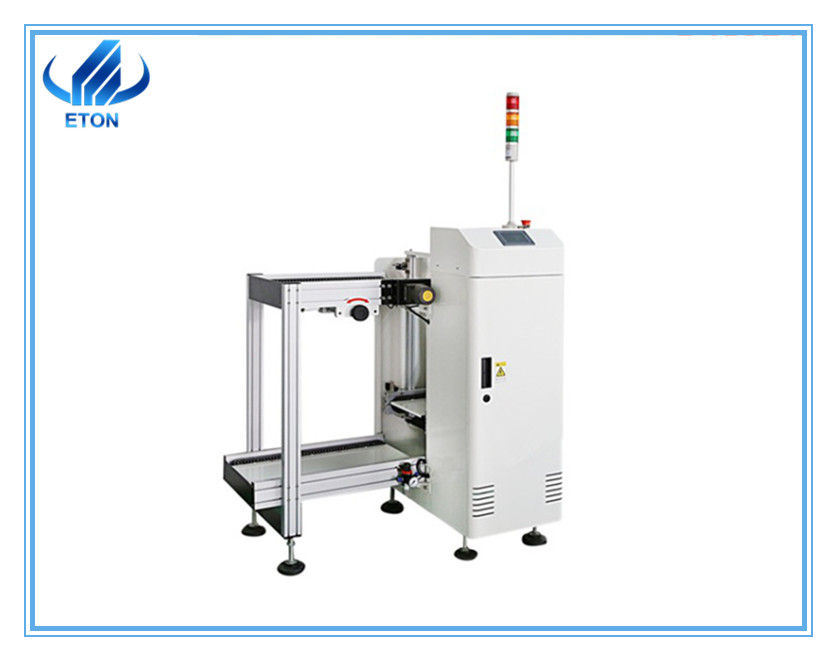

ET-L250 send board machine
Features:
1) Special aluminum frame guide rail and special plover plastic chain
2) The lifting platform 90w brake motor is driven by ball screw to make the magazine jump up and down
3) Transmission motor Taiwan 15W constant speed motor
4) Pneumatic clamping structure
| Technical Parameter: | |
| Item | HLD-250 send board machine |
| Dimension | L1100*W780*H1200mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Transmission motor | Taiwan 15W fixed speed motor |
| Structure | Pneumatic clamp structure |
| Magazine Specifications | L355*W320*565mm |
| Maximum size of PCB | L330*W250 |
| Direction | Right to left / left to right |
| Lift platform pitch selection | 10,20,30,40 |
| Transmission height | H=920 |
| Controller | Mitsubishi PLC programmable controller |
| Function | Automatically send board |
| Operation control panel | Display control true color touch screen |
| Pneumatic Components | Push plate cylinder position, adjusted by screw |
| power supply | 220V 50HZ |
| No. of Full load storage board | 50 PCS |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
Our Services
1. offer detail manual user .
2. customer to our factory study and training .
3. offer overseas service : can send engineers
4. to customer factory for install
FQA
Q1: Are you a manufacturer or trading company?
A1: A company integrated with R&D,manufacturing,sales&service.
Q2: What about the shipping methods?
A2:Our mode of transportation is by sea, air and road.
Q3:What’s your delivery time?
A3:Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q4:How can you make sure we will receive the machine with high quality?
A4: Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
Q5:How is your service?
A5:If you buy our machine,we will send our engineer to your factory to install machine and training freely.
