Warranty: | 1 Year | Condition: | New |
---|---|---|---|
Type: | SMT Machine Related Products | Dimension: | L1600*W1120*H1200mm |
Structure: | Pneumatic Clamp Structure | Direction: | Right To Left / Left To Right |

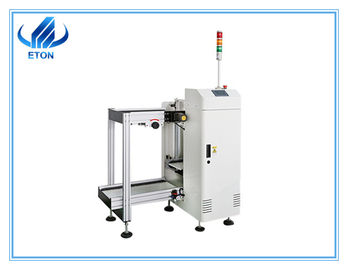

ET-L460 send board machine
Features:
Controller Mitsubishi PLC programmable controller
Function Automatically send board
Operation control panel Display control true color touch screen
Pneumatic Components Push plate cylinder position, adjusted by screw
Technical Parameter: | |
Item | HLD-460 send board machine |
Dimension | L1600*W1120*H1200mm |
Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
Lift | 120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
Structure | Pneumatic clamp structure |
0.6M long push plate Conveyor | 1 set |
Turnover box specifications | (L)535*(W)530*(H)565mm |
Maximum size of PCB | (L)525*(W)460mm |
Direction | Right to left / left to right |
Lift platform pitch selection | 10,20,30,40 |
Transmission height | H=920±30 |
Controller | Mitsubishi PLC programmable controller |
Function | Automatically send board |
Operation control panel | Display control true color touch screen |
Pneumatic Components | Push plate cylinder position, adjusted by screw |
power supply | 220V 50HZ |
No. of Full load storage board | 50 PCS |
Gas source | 0.4-0.6MPa |
Electric control box | 1 set |
Our Services
1. offer detail manual user .
2. customer to our factory study and training .
3. offer overseas service : can send engineers
4. to customer factory for install
