Warranty: | 1 Year | Condition: | New |
---|---|---|---|
Name: | SMT Production Line | No. Of Full Load Storage Board: | 50 Pcs |
Item: | HLD-250 Loader Machine | Direction: | Left To Right / Right To Left |

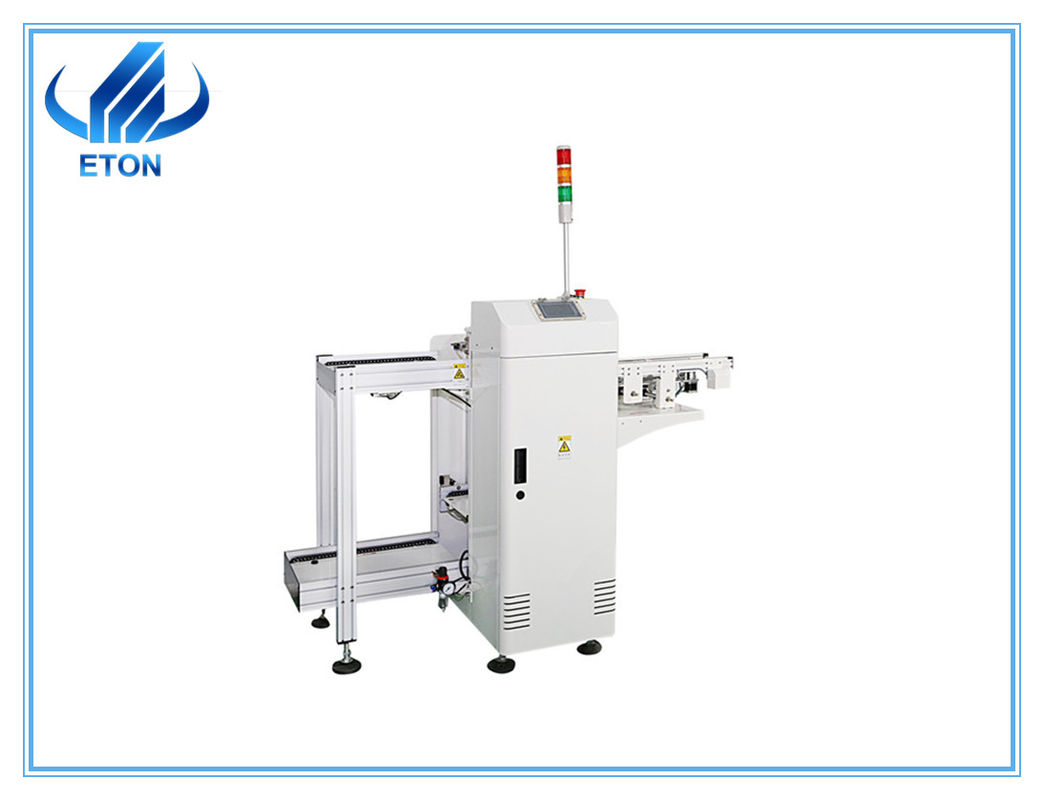

HT-UL250 loader machine
Features
Special aluminum frame guide rail and special plover plastic chain
The lifting platform 90w brake motor is driven by ball screw to make the magazine jump up and down
Pneumatic clamping structure
Direction left to right/right to left
The controller adopts mitsubishi PLC programmable controller
Automatic closing function
Operation control panel display control true color touch screen
Item | HLD-250 loader machine |
Dimension | L1700*W780*H1200±30mm |
Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
Structure | Pneumatic clamp structure |
0.7M long push plate Conveyor | 1 set |
Magazine Specifications | L355*W320*565mm |
Maximum size of PCB | L330*W250 |
Direction | Left to right / right to left |
Lift platform pitch selection | 10,20,30,40 |
Controller | Mitsubishi PLC programmable controller |
Closing function | Automatic |
Operation control panel | Display control true color touch screen |
power supply | 220V 50HZ |
Gas source | 0.4-0.6MPa |
No. of Full load storage board | 50 pcs |
Electric control box | 1 set |
Company profile :
ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic SMT machine.In 2011,set up ShenZhen Eton Automation Equipment Co.,Ltd.In 2011,HT-12 series began selling.In 2011,HT-E3 was complete research and development (Eton 3 generation machine).
Our Services
1. offer detail manual user .
2. customer to our factory study and training .
3. offer overseas service : can send engineers
4. to customer factory for install
