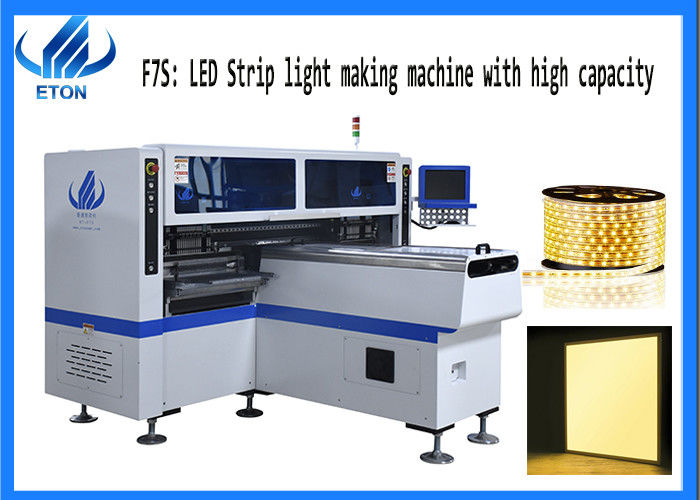

170000cph 1000mm LED Strip Light Mounter 2.7m Length

LED Strip light mounter machine for 500mm or 1000mm

F7S Main Features

1. Total 1400 kg with 2.7m length, 2.45m width, 1.53 height.
2. Suitable for max PCB size is 1200*330mm.
3. PCB clamping adopt unique design, adjustable pressure pneumatic.
4. F7S as the high speed machine with 170000 CPH, the mounting mode is group picking and group mounting, feeding missing components automatically.
5. Camera functions: there are 5 sets of imported camera for vision alignment and mark correction.
6. 1 set motion control card module, it is independent research and development by ETON.

SMT Line design by ETON

Here is the line design of F7S, this production line apply to 0.6m/1.2m led tube or 0.5m/1m led strip light or led panel light, etc .

This SMT Line is high capacity with 150000-170000 chip per hour.

How can I got 5 meters strip light by 0.5m?

For 5 meters strip light, it can be welding by 10 PCS 0.5m strip light. So here need to use other assembly machine for long strip light. ETON as the biggest highspeed pick and place machine manufacturer in China, we provide the whole SMT production line design for clients.

Welding machine& Cutting machine& Slitting machine& Rolling machine for led strip light assembly.

RFQ

1. Do you have higher speed led strip light machine ?

A:Yes, we have supper high speed led strip light making machine, the speed reach 200000-250000 cph.

2. How can I got the machine parameter details?

A:Dear Manager, if you are interested in our machine, please contact us by email or whatsapp or wechat number: +8613590151025.

3. How long for shipping day?

A:For shipping day usually need 30 working days, please contact us for much details.
