Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Dimension: | 2550*1650*1550mm |
|---|---|---|---|
| System: | Windows7 | Software: | R&D Independently |
| Warranty: | 1 Year | Total Weight: | 1250kg |
| Speed: | 40000CPH | Nozzles: | 8PCS |
| Feeders: | 30 PCS | ||
| High Light: | 40000CPH Led Light Production Line,4KW Led Light Production Line,SIRA Led Light Smd Machine |
||

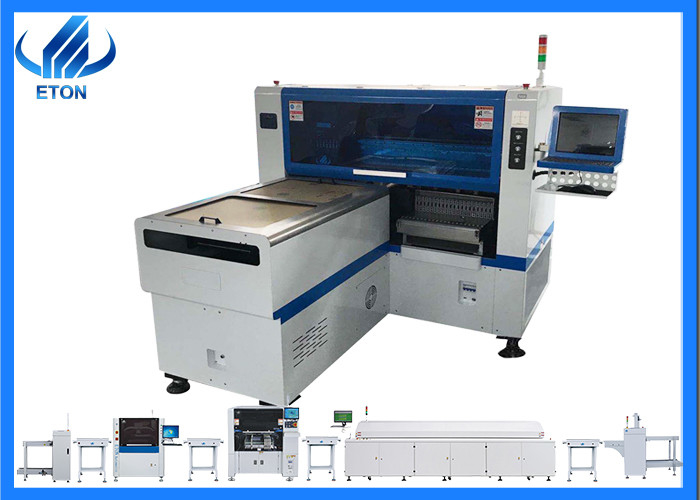

Multi Functional smd machine led light production line
Product details

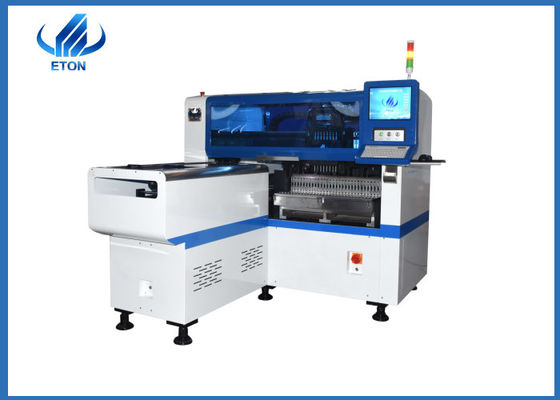

Mutifunctional pick and place machine
Application for LED bulbs,led light,tube,bulb,panel light,flexible light strip,street light,downlight, led display screen,power driver, etc.
Mounting components :LED,capacitors,resistor,IC,shaped components,etc
Strong stable
High-end magnetic linear motor and servo motor Ensure the stable operation of the machine
High capacity
The feeding way is electric feeder with double motor,keep the machine running at high speed.with 45000CPH.
High precision
2 sets of imported camera,vision mark ,Visual Mark, Automatic Search for Mark Points.keep high precision.
High Efficiency
Maximize Time Saving and Improve Production Efficiency
Improve accuracy and avoid defective products
| HT-E8S | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Conveyor transmission | Max length:1200mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
Application
lamps and lanterns: fluorescent lamp, bulb lamp, ceiling light, panel light, cast light lamp, mining lamp, down light, etc
Lighting: soft light tube, hard tube, advertising module, etc
Pasting class: LED watch pasting
lwe will send our engineer to your factory to install machine and training freely.
lWe have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
lStandard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Before services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
