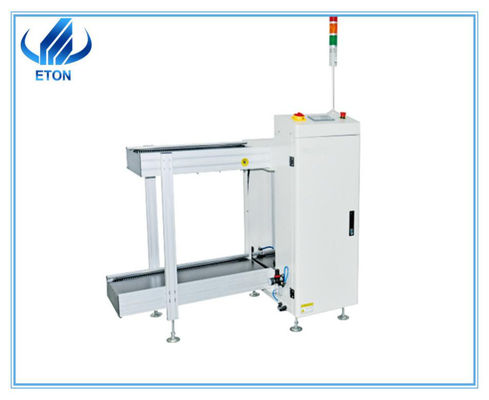

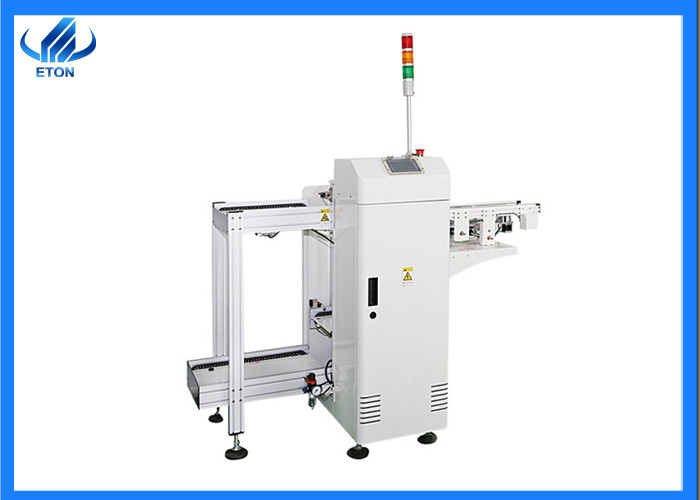

220V SMT Production Line Loader Machine Pneumatic Clamp SMT pcb loader

220V SMT Production Line Loader Machine Pneumatic Clamp SMT pcb loader
220V SMT Production Line Loader Machine Pneumatic Clamp SMT pcb loader

Large Image :  220V SMT Production Line Loader Machine Pneumatic Clamp SMT pcb loader

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC\CE\SIRA
Model Number: ET-L330
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: FOB USD 3000/sets
Packaging Details: Vacuum packaging and wooden box packaging
Delivery Time: 15~30 days
Payment Terms: L/C, T/T
Supply Ability: 50 PCS per month
Contact Now
Detailed Product Description
Application: SMT Production Line Warranty: 1 Year
Delivery: Within 30 Days Item: ET-L330 Send Board Machine
Product Name: SMT Loader Machine Power Supply: 220V 50HZ
Power(w): 15KW Type: SMT Machine Related Products
Speed: 0-6m/min Material: Steel And Aluminium,Stainless Steel
Highlight:

SMT Production Line Loader Machine

,

220V Line Loader Machine

,

Pneumatic Clamp SMT Pcb Loader

Introducing machine



The Frame is Special aluminum profile guide rail and special thousand bird type plastic chain.Controller is Mitsubishi PLC programmable controller.



Parameter of Loader machine



Item ET-L330 send board machine
Dimension L1400*W860*H1200±30mm
Transmission motor Taiwan 15W fixed speed motor
Structure Pneumatic clamp structure
Magazine Specifications L460*W400*565mm
Maximum size of PCB L450*W330
Transmission height H=920±30
No. of Full load storage board 50 PCS
Pneumatic Components Push plate cylinder position, adjusted by screw
power supply 220V 50HZ
Direction Right to left / left to right



Features of SMT loading machine:



  1.  Robust and stable sheet metal main frame design,
  2.  The effective cylinder push plate design can ensure that the PCB board is not damaged
  3.  Man-machine touch screen operation interface, highly simple man-machine dialogue, easy to understand
  4.  Panasonic PLC program control, multi-functional circuit loop and program design, stable performance, ensure smooth production line and maximize production capacity
  5.  Humanized programming, 5 kinds of pitch options, can set the pitch of the PCB board
  6.  Capacity setting, can realize planned production control (sound and light prompt)
  7.  Sound and light prompt alarm system, man-machine interface screen abnormal information prompt, easier and more convenient maintenance.





Company profile

  • ETON has more than 10 years of experience in the SMT field, mainly producing placement machines, connection stations, reflow soldering, etc.
  • We have exported to more than 20 countries and enjoy a good reputation in overseas markets.
  • We have our own industrial park,equipped with an advanced processing and manufacturing center,strict quality control,and standardize production,streamline production processes.



220V SMT Production Line Loader Machine Pneumatic Clamp SMT pcb loader 0



Our services

  • Before buying machine
  1. Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
  2. 24 hours online service and technical support, solve your questions quickly!
  3. Sound company organization and working system, guarantee you a fast delivery!
  4. Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
  • After buying machine
  1. 1 year free warranty
  2. Visit customers regularly and gather information.
  3. Provide latest information about technology and equipment.
  • Ship and package
  1. Shipping: Within 30 days after payment
  2. Packaging: Standard export package or customized package



FAQ:



1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.What is the delivery date?
We will deliver the goods after 30 days' deposit.
3.What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
4.What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.
5.How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate
