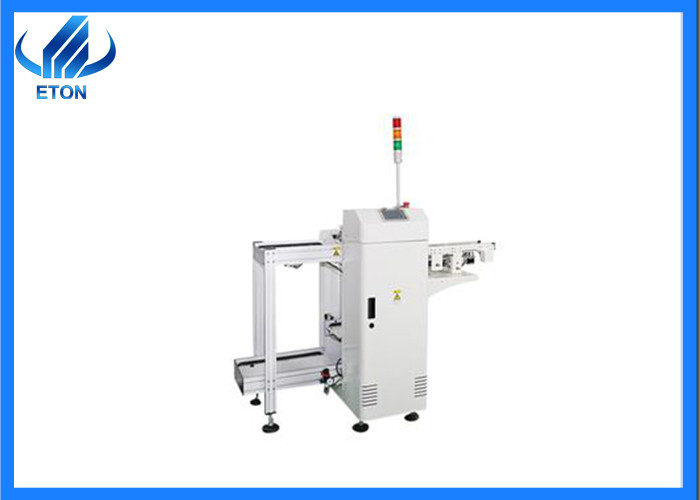

Mitsubishi PLC Pcb Loader Unloader Machine Automatic PCB Conveyor

Mitsubishi PLC Pcb Loader Unloader Machine Automatic PCB Conveyor
Mitsubishi PLC Pcb Loader Unloader Machine Automatic PCB Conveyor

Large Image :  Mitsubishi PLC Pcb Loader Unloader Machine Automatic PCB Conveyor

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET-UL330
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard vacuum wooden box packaging
Delivery Time: 5-8 work daus
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Un-loader Machine/receiving Machine Item: ET-UL330 Un-loader Machine
Dimension: L1900*W860*H1200±30mm Operation Control Panel: Display Control True Color Touch Screen
Maximum Size Of PCB: L450*W330 Direction: Left To Right / Right To Left
High Light:

Pcb Loader Unloader Machine

,

PLC Pcb Loader Unloader

,

PLC PCB Conveyor

Mitsubishi PLC Pcb Loader Unloader Machine Automatic PCB Conveyor



High quality and good performance  un-loader machine PCB conveyor automatic



The description of un-loader machine



It is mainly used at the end of the SMT production line to store the soldered PCB boards through the material rack. Its frame is driven by a special aluminum profile guide rail and a special thousand bird type plastic chain, driven by a 90W Taiwan brake motor, and the magazine moves up and down through a ball screw. It uses a pneumatic clamp structure and is controlled by a Mitsubishi PLC.



Technical parameter of un-loader machine



Item ET-UL330 Un-loader machine
Dimension L1900*W860*H1200±30mm
Frame Special aluminum profile guide rail and special thousand bird type plastic chain
Lift 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Structure Pneumatic clamp structure
0.8M long push plate Conveyor 1 set
Magazine Specifications L460*W400*565mm
Maximum size of PCB L450*W330
Direction Left to right / right to left
Lift platform pitch selection 10,20,30,40
Controller Mitsubishi PLC programmable controller
Closing function Automatic
Operation control panel Display control true color touch screen
power supply 220V 50HZ
Gas source 0.4-0.6MPa
No. of Full load storage board 50 PCS
Electric control box 1 set



Feature of receiving machine



  1. Mainly used at the end of the SMT production line, to store the soldered PCB board through the material frame, with automatic board receiving function;
  2. Reduce the pad oxidation caused by manual boarding, and greatly reduce human resources
  3. The control system adopts PLC control, and the operation interface adopts touch screen, with stable performance and convenient operation;
  4. The frame structure adopts sheet metal welding, aluminum profile construction, and the surface is painted;
  5. The lifting structure adopts the motor lifting setting, and the effective setting step can be selected as; 10mm, 20mm, 30mm, 40mm.

Uses



can be used for the transmission of circuit boards in the LED lighting industry.
