AC220V 50Hz Smt Loader Machine In LED Light Production Line
Loader machine introduction

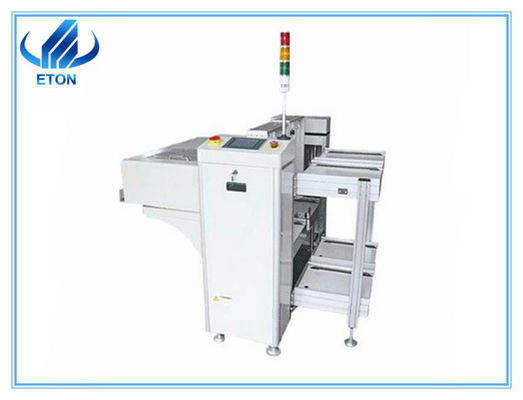

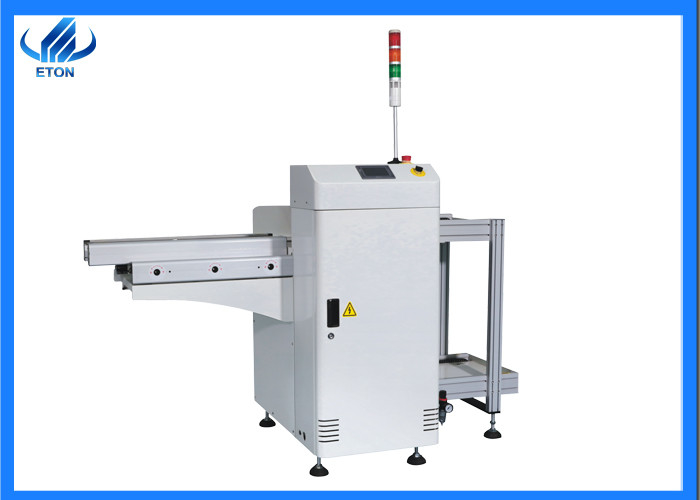

The board loading machine is also called the board feeding machine and the feeding machine. It is a kind of production equipment that needs to be used in the SMT production and processing of electronic products. Its main function is to place the unmounted PCB boards in the SMT board loading machine. The board arrives at the board suction machine, and then the board suction machine automatically places the PCB on the track of the solder paste printing machine and uploads it to the solder paste printing machine for solder paste operation.
The SMT automatic loading machine is used at the source of the SMT production line. According to the requirements of the rear equipment, the PCB plates stored in the circulating box will be transferred to the production line one by one. When all the PCB plates in the circulating box are transferred, the empty circulating box will be automatically downloaded and replaced with the following fully loaded circulating box.
The features of Loader machine
1.The device of loading PCB in the SMT production line;
2.PLC control, color man-machine interface operation;
3.Adopting the structure of stepping motor to push the board, the force and speed of the pushing board can be adjusted;
4.Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5.Multiple electrical distribution circuit protection, safe and reliable;
6.Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance;
7.Standard SMEMA signal communication mode.
| Fully automatic loader |
LD250 |
| Description |
This equipment is used for the board loading operation of the circuit board in the production line |
| Number of turnover boxes |
One box on working,two boxes out of frame segment,two boxes Into the frame segment(Or customer specified) |
| Send board time |
Around 6s |
| Frame change time |
Around 25s |
| PCB Thickness |
0.4～3.0mm |
| step pitches Selection |
1～4(10mm step pitches) |
| Transmission Height |
900±20mm |
| Transmission Direction |
Left→Right,Right→Left |
| Power Consumption |
Single-phase AC110～220V (optional), maximum 300 VA |
| Air pressure and Air flow |
4～6Bar,Up to 1 L/min |
| Specification parameter |
| PCB size L*W(mm) |
80*50-330*250 |
| Dimension(L*W*H)(mm) |
1455*800*1200 |
| Size of Turnover frame(mm) |
355*320*565 |
| Approximate Weight(kg) |
About 140 |
After Services
Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
24 hours online service and technical support, solve your questions quickly!
Sound company organization and working system, guarantee you a fast delivery!
Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
