Product Details:
Payment & Shipping Terms:
|
| Dimension: | L600mm*W980mm*H1200mm | Substrate Size: | Min:50*50mm Max:330*350mm |
|---|---|---|---|
| Transfer Motor: | Stepper Motor | Transfer Speed: | 0-17.5 M / Min |
| Item: | PCB Cleaning Machine | Control: | Mitsubishi PLC Control, Operation Panel For Display Control Touch Screen |
| High Light: | Dust Removal Pcb Cleaning Equipment,Electrostatic Pcb Cleaning Equipment,Electrostatic Circuit Board Cleaning Machine |
||

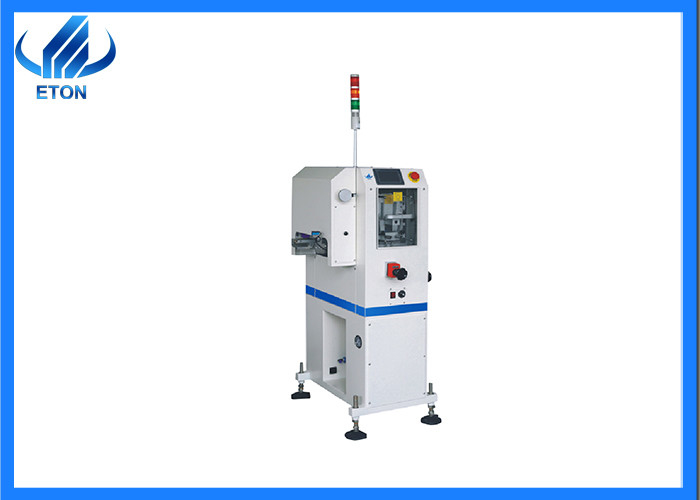

Electrostatic Dust Removal Pcb Cleaning Equipment Circuit Board Cleaning Machine
Introduction
The automatic cleaning machine for PCB board surface is used in the SMT automated production line and is installed between the board loading machine and the solder paste printing machine. Its purpose is to ensure that the surface of the PCB is clean before printing, eliminate static electricity on the PCB board, effectively prevent defective soldering, and improve product quality to achieve the purpose of enhancing product reliability.
Specifications
| Item | PCB cleaning machine |
| Dimension | L600mm*W980mm*H1200mm |
| Substrate size | min:50*50mm Max:330*350mm |
| Transfer motor | Stepper motor |
| Transfer speed | 0-17.5 m / min |
| Control | Mitsubishi PLC control, operation panel for display control touch screen |
| Transmission Direction | Single(left→right or right→left) |
Features
What is it used for?
Used in the SMT production line, in order to eliminate the static electricity of the PCB board, prevent defective soldering, improve product quality and enhance product stability.
Why use a PCB cleaning machine?
Because the PCB is not strictly cleaned when it leaves the factory, static electricity is easily generated during the processing, which may cause static electricity damage or adsorb dust during the SMT process. There are a large amount of debris and dust remaining on the surface, edges, and through holes of the PCB. Foreign objects such as dust can cause poor printing, false soldering, empty soldering, component tilting, and skewing. The use of the PCB cleaning machine is to ensure that the surface of the PCB is clean before printing, eliminate the static electricity of the PCB board, effectively prevent poor soldering, improve product quality, and achieve the purpose of enhancing product reliability.
What are the methods for PCB cleaning?
| Manual cleaning | High pressure air gun | PCB surface cleaning machine | |
| Advantages | simple, suitable for small batch production | good cleaning effect | automation, good cleaning effect, and static elimination. |
| Disadvantages | Consume manpower costs, increase the probability of manual errors |
waste of energy, high noise, easy to generate static electricity |
high initial investment cost |
FAQ
1. Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
2. Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
3. What is the delivery date?
We will deliver the goods after 30 days' deposit.
4. Is this machine easy to operate?
Of course, the operating system supports Chinese-English interface display, easy to understand and operate.
5. Why choose us?
Leading SMT Supplier in China; In the LED industry market share is in an absolute leading position.
