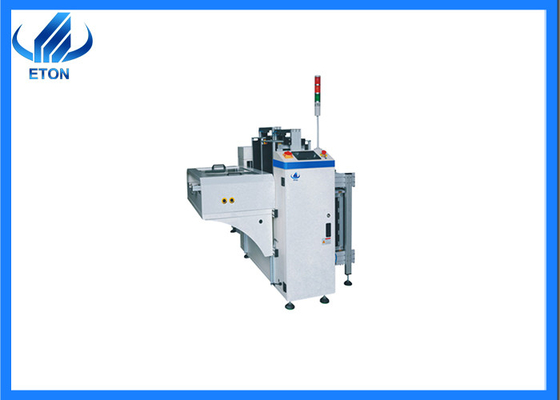

330 length pcb smt unloader can automatically split the board NG/OK double unloader

330 length pcb smt unloader can automatically split the board NG/OK double unloader

Parameter

Machine features

• Device of receiving circuit board in the SMT production line;
• PLC control, color man-machine operation interface;
• Adopt stepping motor push plate structure, the strength and speed can be adjusted;
• Auxiliary positioning brake system, accurate positioning, fast rising/falling speed, high production efficiency;
• Match a variety of receiving modes.

The working principle of the NG/OK double unloader to place the PCB board in the material frame

The empty frame reaches the lifting platform sensor to confirm the position of the material frame through the upper frame entry rail. The stepping motor on the PCB board conveying track controls the pusher to push the board into the material frame. The sensor feels the PCB board enters the frame, and the material frame lifting platform lowers the material frame by one grid for the next PCB board to enter the frame to adjust the position of the material frame. Sequentially until the frame is full, when the sensor senses that the material frame is full, the lifting platform will send the filled material frame to the lower frame out rail.

Company information

Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.

• Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support;
• Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China;
• Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month;
• Good and professional service. Provide engineer Door-to-door service, support video online training, video training share, free replaced machine core part during warranty. And also we could provide professional SMT line solution.

The wiring of the NG/OK double-retracting trigger in the production line

1. Reflow oven: after reflow oven, a cooling connection station (plus cooling fan), reflow oven + cooling connection station + NG/OK double unloader is required

2. When connecting to the testing equipment, a conveyor can be added to the front. The wiring is: testing equipment + buffer loader + conveyor + NG/OK double unloader (Note: the buffer loader is to prevent the previous production speed from being too fast and the subsequent production line speed cannot keep up, and its buffering and temporary storage functions )
