Product Details:
Payment & Shipping Terms:
|
Length: | 2550MM | Width: | 1650MM |
---|---|---|---|
Height: | 1550MM | Weight: | 1700KG |
Power: | 380AC 50Hz | Power Consumption: | 4KW |
Heads: | 12 | Feeder Stations: | 28 |
High Light: | Bulb Pick And Place Machine,AC380V Pick And Place Machine,LED SMT Production Line 4KW |

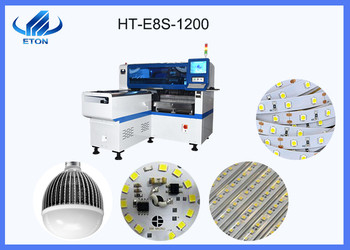

Model
|
HT-E8S-1200
|
Dimension (L*W*H)
|
2550*1650*1550mm
|
G/W
|
1700 KG
|
PCB Length width
|
Max:1200*500mm
Min:100*100mm |
Power
|
AC 380V 50Hz
|
Power consumption
|
4KW
|
PCB thickness
|
0.5~5mm
|
PCB clamping
|
Adjustable pressure pneumatic
|
Mounting mode
|
Group to take separate placing , Separate picking and separate placing
|
Camera
|
2sets/ Vision alignment,mark correction
|
Mounting precision
|
±0.04 mm(repeat precision)
|
Mounting element height
|
≤15mm
|
Mounting speed
|
45000 CPH
|
Feeders Station
|
26 PCS
|
Nozzles
|
12PCS
|
Applicable camera
|
Chip 0402,LED,3014/3020/3528/5050 and resistor ,capacitor,bridge rectifiers
|
In order to meet the rapid development of the lighting industry market demand, research and
development a multi-functional placement machine HT-E8S. HT-E8S is a new model pick and
place machine of Eton company. This machine designed for many kinds of PCB boards. Using
newest high magnetic linear motor,
so the speed and accuracy is better than normal multi-functional machines..
What is SMT Line?
SMT is surface mount technology (short for Surface Mount Technology) and is currently the most
popular technology and process in the electronics assembly industry.
The size and weight of patch components are only about 1/10 of that of traditional plug-in components.
After SMT is generally used, the volume of electronic products is reduced by 40%~60%, and the weight
is reduced by 60%. %~80rference. Easy to automate and increase productivity.
Shenzhen Eton Automation Equipment Co., Ltd focus on building national brand and concentrate
on providing customers professional guidance, good quality machines, good sale services of
automatic SMT machines. With the rapid development of the LED industry.
