| Name: | Pick And Place Machine | Model: | HT-T9 |
|---|---|---|---|
| Feeders: | 68 Pcs | Heads: | 68 Pcs |
| Camera: | 5 Sets | PCB Size: | 250 Mm* Any Length |
| Feeding Way: | Electric Feeder With Double Motor |

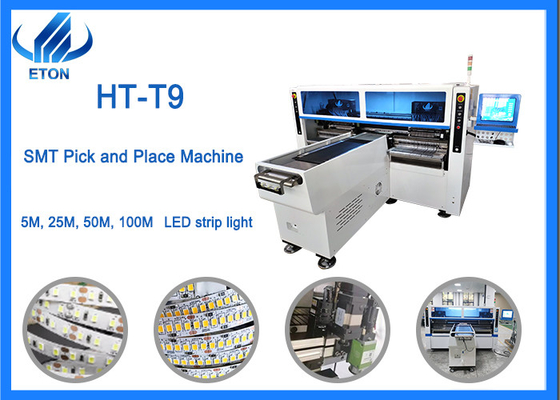

led strip making machine for 50M with 250000CPH led pick and place machine
Pick and place Machine main features
High: mounting speed: 250000CPH(in good conditions) mounting speed
High accuracy: the guide rail adopt magnetic linear motor and servo motor
Four modules and two arms, 68 feeders station and 68 heads
mounting mode of group to pick and group to place
5 sets of digital camera, vision alignment and mark correction
Apply to any length of led flexible strip, including 5M, 10M, 25M, 50M, 100M and so on. There is a platform to supports the PCB soft board of LED flexible strip.
software is researched and developed independently by ETON which has two language version, English and Chinese. it is also very easy to operate.
Pick and place Machine main parameter
| PCB Length width | 250mm*Any length |
| PCB Thickness | 0.5-1.5mm |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Transmission speed | >500mm/sec |
| Repeating Mounting precision | ±0.02mm |
| Component height | ≤5mm |
| No. Of feeders station | 68PCS |
| No. Of head | 68PCS |
| Power consumption | 6KW |
| Positioning way | Optical |
| Feeding way | Electric feeder with double motor |
The applications and components of HT-T9 SMT pick and place machine
PCB SIZE: 250 mm * any length
APLICATIONS: 5 M, 10 M, 25 M, 50M, 100 M or any length of LED flexible strip and ROLL TO ROLL .
COMPONENTS: LED 3014 / 3020 / 3528 / 5050 and resistors, capacitors, bridge rectifiers etc.
The semi automatic SMT production line of HT-T9 SMT pick and place machine
Because the Semi automatic production line has the lower Costs,the requirement of space is smaller and production is relatively flexible. Therefore, it is suitable for most factories.
The delivery and transport
We install the international standard and pack the machine in three steps:
The first step: packing the machine with foam cotton and stretch film to protect the outside of the machine
The second step: Vacuum packaging, put the desiccant in a vacuum bag to prevent moisture, use straps to secure the machine
The third step:professional wooden box packaging
In addition, we can choose land transportation, air transportation and sea transportation according to customers' needs.
