Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | T9- 2S |
|---|---|---|---|
| Heads: | 136 PCS | Feeders Station: | 136PCS |
| Mounting Mode: | Twice Picking And Once Placing | Feeding Way: | Electric Feeder With Double Motor |
| PCB Size: | 250(±10)mm* Any Length | ||
| High Light: | led strip pick and place equipment,136 heads pick and place equipment,500000CPH LED Light Production Line |
||

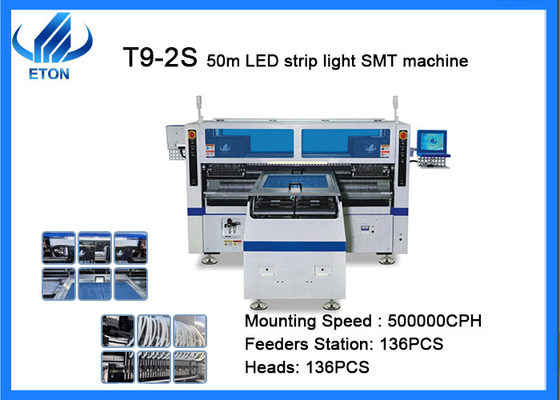

led strip pick and place machine with 136 heads and 500000CPH led light SMT machine

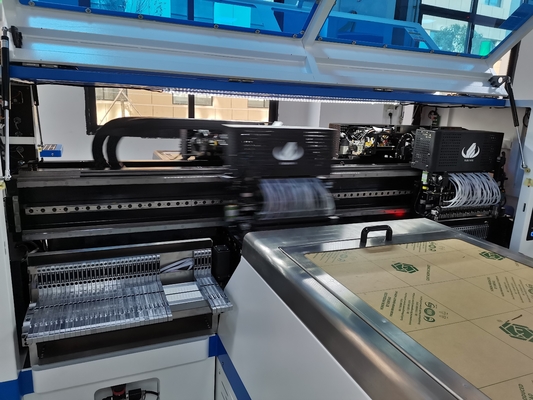

The Features of 136 heads led strip pick and place machine
1. T9-2S has the Ultra mounting speed, for optimum capacity, it can reach 500000CPH.
2. T9-2S has 4 mounting heads, for each mounting head, it has 34 PCS heads, total has 136 PCS heads
3. T9-2S also has four side of Feeder station, each side has 34PCS, and total has 136 PCS heads
4. T9-2S is adopting two time picking and once placing mounting mode; it can produce four kinds of materials at the same time;
5. T9-2S also has 10 sets of camera, it can detect the presence or absence of components, ensuring high mounting speed and mounting precision.
Technical parameter of 136 heads led strip pick and place machine
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double-rail+four groups of placement heads |
| No. Of camera | 10 sets of digital camera |
| No. Of feeder station | Double side 136 PCS, Single side 68 PCS |
| No. Of head | Double side 136 PCS, Single side 68 PCS |
| Mounting speed | Double side: 500000 CPH, Single side: 250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and resistor, capacitor, bridge rectifiers etc. |
| Feeding way | Intelligent electric feeder with double motor |
| PCB size | 250(±10)mm* any length |
| PCB thickness | 0.1-0.5mm |
| Repeat precision | ±0.05mm |
| Mounting height | ≦5mm |
The full automatic production line of 136 heads led strip pick and place machine
Company introduction
ETON: the top manufacturer of SMT pick and place machine in China, we have more than 80% market share of LED light SMT production line industry in China, also export more than 20 countries, India, Turkey, Egypt, South Africa, and so on.
The Service
1. One year warranty, during warranty, any parts that need to be repaired and replaced will be free
2. Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
3. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
4. We give professional technology suggestions to our clients, share the updated news with our clients
5. We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
6. According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
