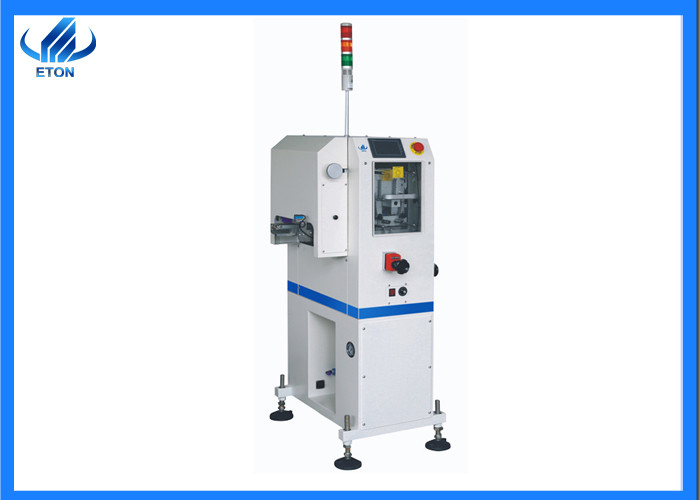

Automatic SMT PCB Cleaning Machine AC220V 50Hz LED Light Production Line

PCB Automatic Smt PCB cleaning machine In Led Light Production Line led light making machine led lights assembly machine surface mount assembly

Product Features of pcb cleaning machine

(1)The brush drive adopts digital speed stepping motor, 200-1200 rpm, and the anti-static brush cleaning effect is more ideal.
(2)Automatically sense and release positive and negative ions with an electrostatic precipitator to ensure product safety.
(3)Specially designed vacuuming mechanism with silent high pressure fan to absorb dust effect is more ideal.
(4)Set of electric control box

Technical parameter of pcb cleaning machine

ETON all products

we can provide a whole SMT production line solution,Inculding pick and palce machine,stencil printer,reflow oven,loader machine,unloader machine,glue dispenser machine,vaccum laoder machine,etc

The surface mount assembly process mainly includes the following steps: solder paste printing, component mount, and reflow soldering. The steps are summarized as follows:

Stencil Printing: solder paste is a follow-up material for the surface adhesive components and PCB to connect with each other. First, the steel plate is etched or laser cut, and then the solder paste is printed on the welding pad of PCB by the squeegee of the Printing machine, so as to enter the next step.

Component Placement: Component Placement is the key technology and work focus of the entire SMT process. The process USES highly precise automatic mounting equipment to accurately place the surface mount components on the solder pad of the printed PCB through computer programming.As the design of surface adhesive components is becoming more and more precise, the distance between the joints is becoming smaller, so the technical level difficulty of placement operation is increasing day by day.

Reflow Soldering,(Reflow Soldering) : Reflow Soldering is to have been placed on the surface of adhesive components of the PCB, after Reflow furnace first preheating with activated flux, to raise its temperature to 217 ℃ melt solder paste, feet and PCB Soldering pad connected components, then after cooling, cooling, make the solder curing, surface adhesive components and PCB bonding is completed.

After Services

Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

24 hours online service and technical support, solve your questions quickly!

Sound company organization and working system, guarantee you a fast delivery!

Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!

RFQ

Q : Is there any quality guarantee?

We stick to quality first, client-oriented, Continuous improvement!

Q: What is SMT Machine?

This is an LED lamp patch machine using surface mount technology.

Q: Whether the machine's after-sale service is guaranteed?

Each of our machines has a one-year warranty and will regularly visit customers for use.

Q: What we can do for you?

A: We provide SMT machine,we can aslo provide Production line scheme and so on.Professional Technical Support and Service.

Q: What is your delivery date?

A: The delivery date is about 25-30 days after receipt of deposit.

Q: What is your payment terms?

A: 30% deposit and 70% balance before shipment.

Q:This machine is easy to use ? if I have no experience, I can also operate it well ?

A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
