Product Details:
Payment & Shipping Terms:
|
| Name: | PCB NOZZLE Cleaner | Dimension: | 655(L) X 560(W) X 475(H) |
|---|---|---|---|
| Software: | R&D Independently | Warranty: | 1 Year |
| Programme Method: | Automatic Data Import/ Video Study/ Keyboard Input | Condition: | New |
| Type: | SMT Machine Related Products | Application: | Smt Production Line |
| Weight: | 20kg | Power Supply: | AC110~220V |
| High Light: | Automatic Nozzle Cleaner energy saving,Low Noise Automatic Nozzle Cleaner,LED Lights Assembly Machine 220v |
||
Automatic Nozzle Cleaner Automatic led lights assembly machine For SMT Line smt factory led light making machine led light production line in SMT factory layout
Product features of Automatic nozzle cleaner
Features:
1.No cleaning solution required
2.Low noise
3.High efficiency and energy saving
4.24 suction nozzles cleaned at a time
Principle and configuration features of cleaning machine:
1.The suction nozzle cleaning machine adopts a unique mechanical design. It uses fluid mechanics to break the water and produce a very small high-pressure water mist.
2.It forms a powerful kinetic energy jet on the suction nozzle at the sonic speed (v = 360m / s), forms a continuous energy field above the suction nozzle to be cleaned, and thoroughly smashes the dirt on the surface and inside (since the suction nozzle is placed independently, it will not damage the suction nozzle during the cleaning process). After cleaning, it will not damage the suction nozzle During the process, the cleaning solution (deionized water or distilled water) is automatically discharged directly.
3.High quality touch screen human-machine interface, PLC control;
4.The pneumatic part uses imported SMC pneumatic components from Japan, which ensures stable and efficient working efficiency;
5.The key parts of the whole machine are all made of 304 stainless steel imported from Japan, and the special parts are made of 316 stainless steel imported from Japan, so as to ensure that the whole machine will not rust due to the use of water, thus affecting the service life of the equipment and other safety hazards.
Technical parameter of automatic nozzle cleaner
| pressure | pressure | compressed air |
| Intake pressure setting | 0.5～0.55MPa | |
| Injection pressure setting | 0.35～0.38MPa | |
| Nozzle injection pressure | ≤0.4MPa | |
| Tube | Intake manifold | ￠12tube |
| Drain tank water pipe | ￠8tube | |
| Cleaning liquid | Cleaning liquid | Industrial deionized water |
| Liquid consumption | ≤300cc/h(5cc/min) | |
| Capacity of water storage tank | 1200cc | |
| Power Supply | Power Supply | AC220～240V |
| Plug | 3-Pin | |
| Consumption of electricity | ≤0.1Kw | |
| Environment | Working environment temperature | -5℃～ (But not frozen.) |
| Liquid temperature | 0℃～ (But not frozen.) | |
| Working environment humidity | 10～60%RH | |
| Environmental humidity of equipment | 10～60%RH | |
| dust | 0.1mg/m³(No conductive dust) | |
| Corrosive gas | Not allow | |
| Others | Outline size | 655(L) x 560(W) x 475(H) |
| Weight | (Including cleaning fluid 2000cc) |

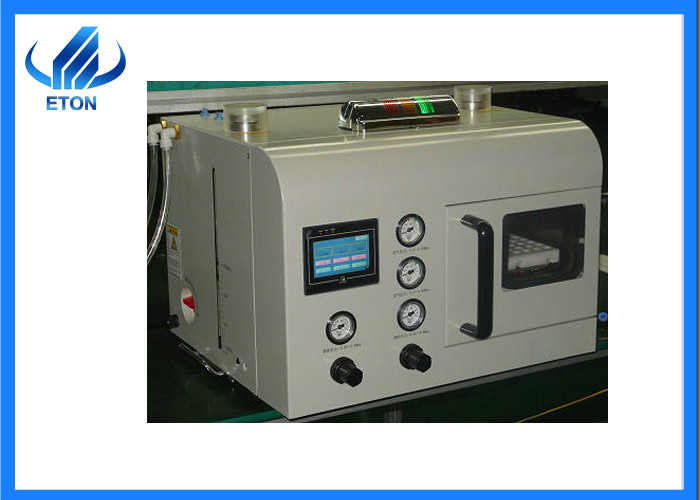

Automatic nozzle cleaner machine SMT machine pictures
