Product Details:
Payment & Shipping Terms:
|
| Name: | PCB Cutting Machine | Dimension: | L1400*W860*H1200±30mm |
|---|---|---|---|
| Software: | R&D Independently | Warranty: | 1 Year |
| Weight: | 160kg | Condition: | New |
| Power Supply: | AC220V 50Hz | Maximum Size Of PCB: | L450*W330mm |
| No. Of Full Load Storage Board: | 50 PCS | Payment: | T/T,LC |
| High Light: | strip light PCB cutting machine,FPCB led lights assembly machine,50HZ led lights assembly machine |
||

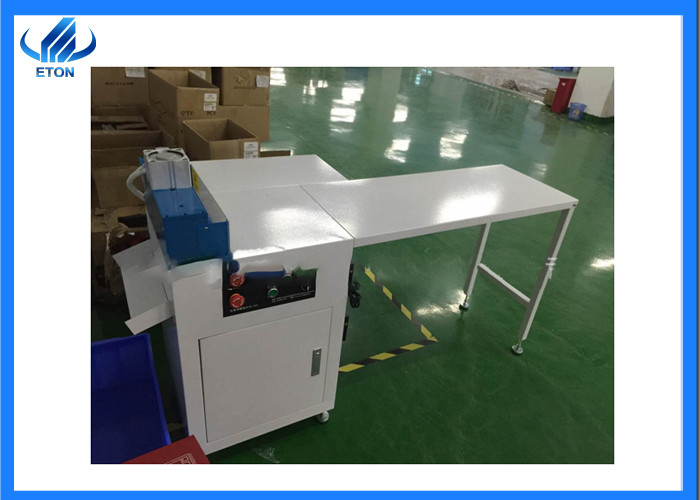

Aluminum substrate copper substrate PCB board LED light strip cutting machine circuit board splitting machine
pcb cutting machine introduction
With 6 knives, cut in 3 times, with little stress and no deformation;
The structure design is humanized, easy to operate, and more practical;
imported tungsten alloy steel blade, high hardness and more durable;
90W famous brand industrial motor, strong power and fast speed.
Product description

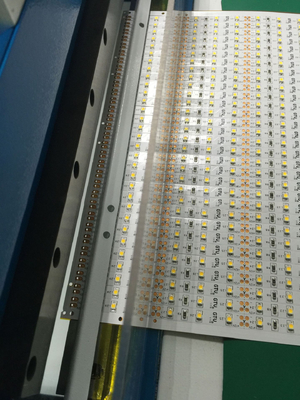

Three sets of blades, divided into three times cuts (30%-50%-20%). The edge of the cut circuit board is flat and smooth, and the board surface is very flat, not twisted or warped. It is the only guarantee on the market that the aluminum substrate will not be deformed PCB cutting machine after cutting.
Due to three times of cutting, the cutting process is very stable, avoiding the production of defective products.
Using high-speed steel material imported from Japan, the durability of the blade is greatly improved, and the aluminum substrate is continuously divided, and the blade life can reach more than one year.
Original imported bearings with precision machined gearboxes and supporting parts ensure perfect cutting quality, reduce machine wear and extend service life.
Technical parameter of PCB cutting machine
| No. | Item | Parameters |
| 1 | Maximum sub-board length | 0.3-2.4m |
| 2 | Sub-board thickness | 0.5-3m |
| 3 | Send board speed | Stepless speed regulation, maximum 300mm/sec |
| 4 | Blade material | Japanese tungsten alloy steel |
| 5 | Sub-board width | 3-100mm adjustable |
| 6 | Applicable PCB material | Aluminum substrate, FR-4 fiberglass board |
| 7 | Power | 220V/50HZ, 90W |
| 8 | Dimension | 2400mm*400mm*240mm |
| 9 | Width | 36KG |
| 10 | Warranty period | The whole machine is 3 years, Blades are 1 year |
Pictures of SMT machine PCB loader machine
SMT LINE ETON
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line. Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
After Services
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After buying machine
1) 1 year free warranty
2) Visit customers regularly and gather information.
3) Provide latest information about technology and equipment.
Our attitude!
Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.
RFQ
1.What about the shipping methods?
Our mode of transportation is by sea, air and road.
2.What’s your delivery time?
Usually 30 days after deposit, if we have inventory, the time can be brought forward.
3.How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4.How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
5.Who is your client?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
6. Is your software interface in English?
English interface and Chinese interface are both available.
