| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Condition: | New | Mounting Speed: | 45000 CPH |
| Name: | Pick And Place Machine | Model: | HT-E8S-1200 |
| Local Service: | India, Egypt, Vietnam |

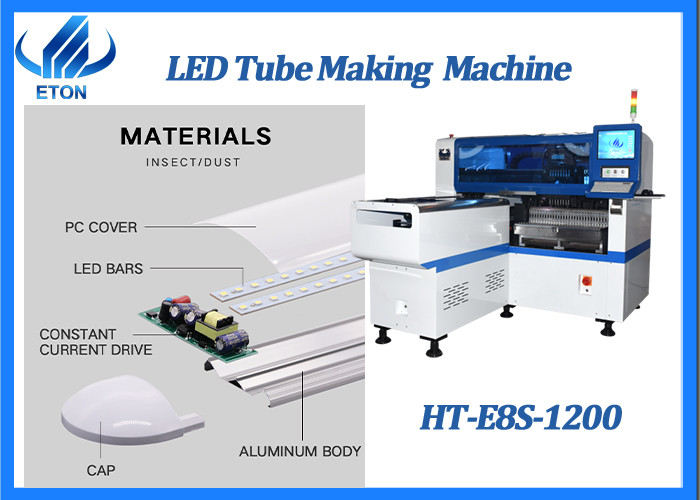

LED tube making mounter machine 45000CPH SMT assembly machine for LED light
Machines Window
In order to meet the rapid development of the lighting industry market demand, research and
development a multi-functional placement machine HT-E8S. HT-E8S is a new model pick and place
machine of Eton company. This machine designed for many kinds of PCB boards. Using newest high
magnetic linear motor, so the speed and accuracy is better than normal multi-functional machines.
Technical parameter
| HT-E8S PICK AND PLACE MACHINE PARAMTER | |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group Picking and separate placing/Separate picking and separate placing |

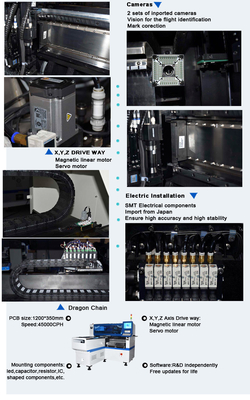

| No. of camera |
2 Sets of imported camera Vision alignment, MARK correction |
| Mounting precision | ±0.02mm |
| Mounting Height | 〈15mm |
| Mounting Speed | 45000CPH |
| Power Consumption | 4KW |
| Conveyor Transmission | Max Length:1200mm |
| Transmission Speed | ＞1000mm/sec |
| Electrical control | Independent research and development by ETON |
| X.Y.Z Axis Driving | High-end magnetic linear motor + servo motor |

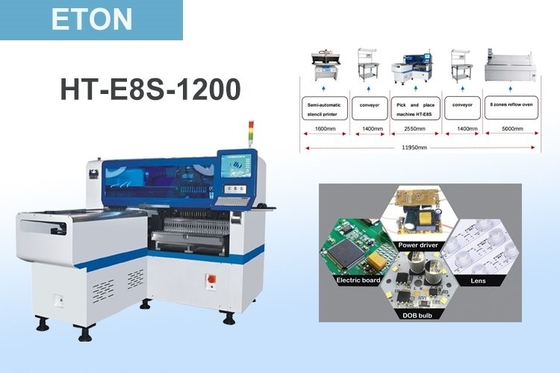

LED tube making machine line
LED tube making machine SMT Line is included stencil printer machine, conveyor, pick and place machine, reflow oven machine.
And this line is also not only suitable for making tube, but also could be produce other led lighting, like the Bulb, down-light, street light, panel light, driver board, etc.
SMT Machine parameters
| Machine name | Semi-automatic stencil printer machine |
| Application | Apply to all kind of PCBA design |
| Function | Printing solder paste on the PCB |
| Max PCB | 600*350MM(Could be customized) |
| Machine name | DOB Mounter machine |
| Application | Apply to all kinds of led lighting board and driver |
| Function | Mounting SMD components on the PCB |
| Max PCB | 450*350 MM |
| Machine name | Conveyor machine |
| Application | Apply to SMT Line/Production line |
| Function | Buffer/transport PCB between different machines |
| Max PCB | 500*350MM(Could be customized) |
| Machine name | Reflow oven machine |
| Application | Apply to all kind of PCBA design |
| Function | Soldering PCB with SMD components |
| Max PCB | 450mm width(Could be customized) |
