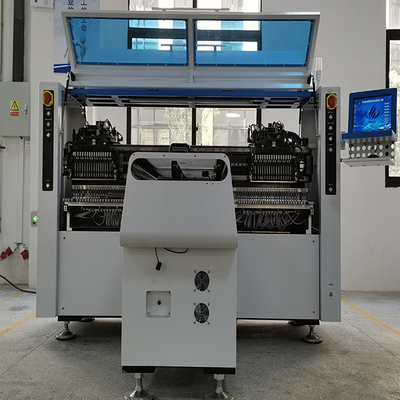

1m/5m strip light making mounter 180000CPH machine in LED light Production Line
What is pick and place machine?
The automatic placement machine is used to realize high-speed, high-precision and automatic placement of components. It is the most critical and complex equipment in the entire SMT production. The placement machine is actually a precision industrial robot. Through the functions of absorption-displacement-positioning-placement, without damaging the components and the printed circuit board, it realizes the rapid and accurate mounting of SMC/SMD components to the specified pad positions on the PCB board.
Parameter
HT-F7S | Technical Parameter |
Length*Width*Height | 2700*2450*1530mm |
PCB Length width |
MAX:1200*330mm MIN:50*50mm
|
PCB Thickness | 0.5~5mm |
Mounting Mode | Group to take and group to mount |
No. of Camera | 5 sets of imported camera |
Vision System | Vision alignment, Mark correction |
Mounting Precision | ±0.02mm |
Mounting Height | 15±2mm |
Mounting Speed | 150000~180000CPH |
Components | LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc. |
Components Speed | 0.2mm |
Feeders Station | 68PCS |
No. of Nozzles | 34PCS |
Electrical control | Independent research and development by ETON |
Motion control card module 1 set | Independent research and development by ETON |
XY Axis Drive Way | High-end magnetic linear motor and servo motor |
Feeding way | Electric feeder with double motor |
Machine main features
1. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m.1m LED flexible strip.

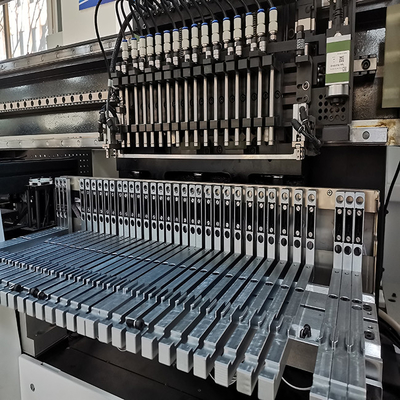

2. Two mounting module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
3. Group to take and group to mount.
4.The mounting speed can reach 180000CPH.
SMT production line
ETON over 15 years experience in SMT machines, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven, glue dispenser, stacking loader and Vibration plate and so on can be provided.
Company introduction
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Clients Projects:
100M Strip Light SMT Production Line
ETON helped the client to plan the 100M production line, including the patch production
line: PCB loader-semi-automatic printing machine-The buffer stage-high-speed pick and place machine - 24M assembly line - reflow oven - PCB unloader, and also planned 24M test line, sub-board line, coating production line. The client put into production in 2021, and the production situation is very good. ETON technicians installed the machine in the client's factory, planned the wiring, tested the production, and trained the client's engineers. The client's project was very successful, becoming one of the few in India that can provide 100M without wires. The factory for the production of all flexible light strips is very competitive, and now is planning add a new SMT production line with ETON to expand production and LED product categories.
