Product Details:
Payment & Shipping Terms:
|
Brand: | ETON | Model: | ET-SME24 |
---|---|---|---|
Warranty: | 1 Year | Name: | Nozzle Cleaner |
Application: | SMT Production Line | Local Service: | India, Egypt, Vietnam |
Foerign Customer: | More Than 30 Countries Have Our Customers | Usage: | For Pick And Place Machie's Nozzles Clean |
High Light: | LED Production SMT Nozzles Cleaner,SMT Nozzles Cleaner 1200CC,SMT Nozzle Cleaning Machine 1200CC |

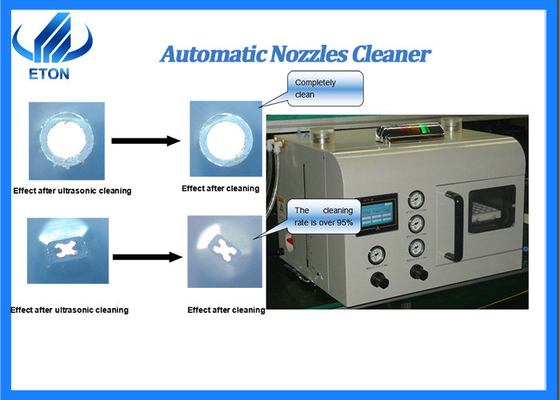

Automatic SMT nozzles Cleaner compressed air in the led production line
Functional features
Parameter
pressure | pressure | compressed air |
Intake pressure setting | 0.5~0.55MPa | |
Injection pressure setting | 0.35~0.38MPa | |
Nozzle injection pressure | ≤0.4MPa | |
Tube | Intake manifold | ¢12tube |
Drain tank water pipe | ¢8tube | |
Cleaning liquid | Cleaning liquid | Industrial deionized water |
Liquid consumption | ≤300cc/h(5cc/min) | |
Capacity of water storage tank | 1200cc | |
Power Supply | Power Supply | AC220~240V |
Plug | 3-Pin | |
Consumption of electricity | ≤0.1Kw | |
Environment | Working environment temperature | -5℃~ (But not frozen.) |
Liquid temperature | 0℃~ (But not frozen.) | |
Working environment humidity | 10~60%RH | |
Environmental humidity of equipment | 10~60%RH | |
dust | 0.1mg/m³(No conductive dust) | |
Corrosive gas | Not allow | |
Others | Outline size | 655(L) x 560(W) x 475(H) |
Weight | (Including cleaning fluid 2000cc) |
Function of nozzles Cleaner machine
1. Component miniaturization: With the rapid development of the electronics industry, components are becoming more and more miniaturized. 0402,0201 components are becoming more and more common and widely used, and 01005 has also appeared. The miniaturization of components is bound to require the corresponding patch machine nozzle also to miniaturization, which brings a problem to the cleaning of the nozzle, if the large nozzle can also be washed by alcohol, fine needle through the hole method, it is now a small nozzle only a few microns aperture is helpless. When clogging occurs, it has to be scrapped.
2. Smaller spacing: now electronic equipment requires smaller volume, more powerful, so the circuit board components are more and more dense, spacing is smaller and smaller, if the patch in the past a little flat difference will not affect too much, but now may set foot on the neighbor's site, resulting in the improvement of the product defect rate.
3. The effect of lead-free: due to the good activity of lead, if there is a slight deviation in the patch, it can be corrected after reflow welding, but after lead-free, the activity of copper is greatly weakened, if the patch deviation occurs, there is no chance to correct.
4. In summary, the requirements of the patch accuracy is higher and higher, the difference may be a thousand miles. The design accuracy of the patch machine has been quite high, but due to the influence of various factors, its performance is greatly reduced, among which the suction nozzle is not clean is also an important factor.
Company Introduction
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
ETON purpose: to create value for customers and create benefits for the society.
ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
Clients
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.Take India as an example,We have many big clients in India, Such as RK,SURYA,Fiem,Calcom,POLYCRB, etc. We have sold over a hundred machines to India.
