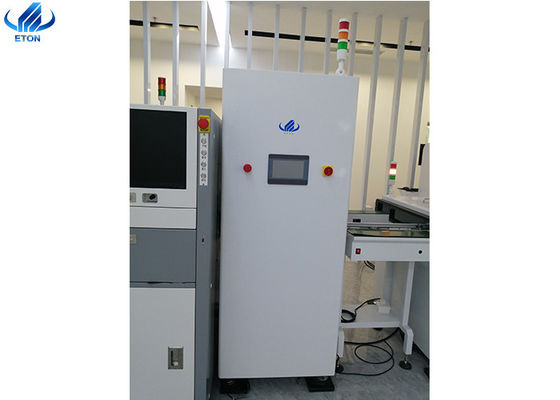

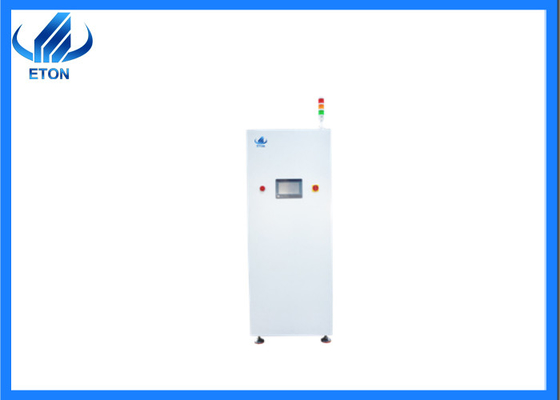

300mm Pcb Board Led Bulb Assembly Machine Smt Buffer Loader

large.img.alt
small.img.alt

Large Image :  300mm Pcb Board Led Bulb Assembly Machine Smt Buffer Loader

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: BF250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: Shipped within 30 days after the deposit is paid
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Circuit Board Capacity: 15 Pieces (or Customer Specified) Cycle Time: Minimum 0.6MM
Transport Height: 900±20mm Transport Direction: Left-Right; Right-Left
PCB Thickness: 0.5-5mm PCB Size(L*W) Mm: 80*50-330*250
Dimension(L*W*H)mm: 500*670*1600 Approximate Weight (Kg): Appro.120
High Light:

PLC Smt Buffer Loader

,

Smt Led Bulb Assembly Machine

,

Smt Buffer Loader

High quality pcb loader automatic smt buffer loader for storing 300mm pcb board



Description



This equipment is used to cache the circuit boards in the production line, and can also be connected to the inspection equipment for NG/OK hierarchical storage


General Description



1. PLC Control system
2. HMI control panel, simple operation
3. 50 PCBs storage capability
4. Store NG/OK PCB automatically according to the signal of upper equipment
5. FIFO (First in first out), LIFO (Las in first out) and pass through function

300mm Pcb Board Led Bulb Assembly Machine Smt Buffer Loader 0



Model BF250 BF330 BF390 BF460
PCB Size(L*W) mm 80*50-330*250 80*50-460*330 80*50-510*390 80*50-510*460
Dimension(L*W*H)mm 500*670*1600 500*740*1600 600*810*1600 660*880*1600
Approximate weight (Kg) Appro.120 Appro.140 Appro.160 Appro.180


Technical paramental



Transport height 900±20mm
Transport direction Left-Right; Right-Left
Power Consumption Single-phase AC110~220V (optional), maximum 850 VA
Circuit board capacity 15 pieces (or customer specified)
Cycle time Minimum 0.6MM
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Air pressure and flow 4~6Bar, up to 5L/min



300mm Pcb Board Led Bulb Assembly Machine Smt Buffer Loader 1



Company information



In 2007,We established the Taipei R&D Center and started the special chip mounter technology and patent research and development.
In 2008, Hong Kong Hong ETON Group Co., Ltd. was established. ETON has made great achievements in the field of LED and has been working hard.
In 2011, Shenzhen ETON Automation Equipment Co., Ltd was founded. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.
Now, ETON has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.

300mm Pcb Board Led Bulb Assembly Machine Smt Buffer Loader 2

After-services



1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

2) 24 hours online service and technical support, solve your questions quickly!

3) Sound company organization and working system, guarantee you a fast delivery!

4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!

300mm Pcb Board Led Bulb Assembly Machine Smt Buffer Loader 3



FAQ



1. Do you supply PCB conveyor machine?
A: Yes, we supply whole SMT line machine, like the conveyor, pick and place machine, reflow oven machine, etc.



2. Is this automatic stencil printer machine suitable for printing lighting driver board?
A: Yes, this automatic stencil printer machine is very high precision, suitable for max pcb size is 400*340mm, printing accuracy reach 0.025 mm.


3. What is this machine warranty ? And how about the after sales service?
A: We provide one year warranty, during warranty, any parts need to be repaired and replaced will be free. And we will support machine install and training online, also machine support remote control, machine will be very easy for operate.





4. Why should you buy from us not from other suppliers?

We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
