Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Weight: | 1700kg | Mounting Speed: | 250000 CPH |
| Feeders: | 68 | Tape Width: | 24mm,8mm,12mm |
| High Light: | Strips LED Making Machine,LED Lights Assembly Machine 68 Feeders,Display LED making Machine CE |
||

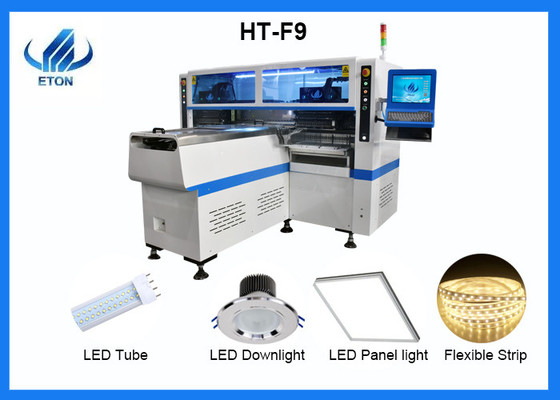

68 heads high speed pick and place machine save cost SMT production line
Features
1. High-end magnetic linear motor
2. 68 heads, 68 feeder stations
3. Group to pick and group to mount
4. Vision alignment, Mark Correction
5. Capacity can Reach 250000 CPH
HT-F9 Main parameters
|
Dimension
|
2700*2300*1550mm
|
|
PCB size
|
Max:1200*330mm Min:100*100mm
|
|
PCB Thickness
|
0.5-5mm
|
|
Mounting Mode
|
Group to take and group to mount
|
|
No. of Camera
|
5 PCS digital camera
|
|
Mounting Speed
|
200000-250000 CPH
|
|
Applicable Components
|
LED 3014/3020/3528/5050,resistor,capacitors,bridge rectifiers
|
|
Feeders Station
|
68PCS
|
|
No. of Nozzles
|
68PCS
|
|
X,Y Axis drive way
|
High-end magnetic linear motor +servo motor
|
SMT Production Line
for the semi-automatic production line, it has five machines: one semi-automatic stencil printer, two conveyors, one pick and place machine, one reflow oven.
semi-automatic stencil printer: leak the solder paste onto the PCB board
pick and place machine: mount the lamp beads or other electronic components to the designed position on the PCB
conveyor: used to transfer the circuit board in the production line
reflow oven: melt the solder paste to make it adhere to the mounting components
WHY choose us?
1.More than 30 years development history.
2.Independent R&D Exclusive Patented technology.
3.85% large and listed LED factory are our client.
4.Top 1 in high-speed pick and place machine in China.
5.We can provide you with the whole production line.
6.Our software is R&D independently.We can offer software upgrade for lifetime for free
7.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
Exhibition
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
1.Do you have oversea after sale service?
We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
2.How is the training?
After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials.
3.It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
4.Does your machines have quality certificates?
We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 10 years) in LED light production line program.
5.Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
The advantages of SMT patches are as follows:
1. Small size and light weight
The volume and weight of SMT components are only about 1/10 of those of traditional plug-in components, which is convenient for mounting. Generally, after SMT chip processing, the volume of electronic products can be reduced by 40% to 60%, while the weight can also be reduced by 60% to 80%.
2. Increased efficiency and reduced costs
SMT patch processing is easy to achieve automation, improve production efficiency, save materials, energy, equipment, manpower, time, etc., and reduce costs by 30% to 50%.
3. High reliability and strong seismic resistance
4.Good high-frequency characteristics, reducing electromagnetic and radio frequency interference
5. Low solder joint defect rate
6. High mounting density
