Vision Alignment LED Making Machine 68 Nozzles LED PCB Assembly Machine

68 heads high speed pick and place machine save cost SMT production line

Features

1. High-end magnetic linear motor + Panasonic Servo Motor

2. 64 heads, 64 feeder stations

3. Group to pick and group to mount

4. Vision alignment, Mark Correction

5. Capacity can Reach 200000 CPH

HT-F9 Main parameters

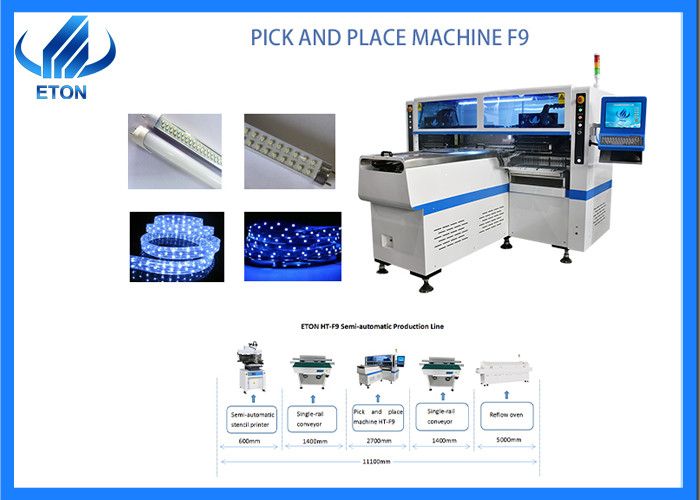

SMT Production Line

1. Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
2. Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
3. Reflow oven is to melt the solder paste to fix and bond the components and PCB board;
4. Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;

ETON Company

• Focusing on SMT high speed pick and place machine more than 30 years
• The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
• ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

Package and Delivery of Pick and Place Machine

Step 1: Wrap with stretch film to prevent the equipment from.

Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.

Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.

Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.

FAQ

what’s the minimum quantity of an order for your company?

1 set machine are welcomed to order, mixed orders are also welcomed.

Why choose us?

We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.

What’s the terms of payment? What about the trade term?

T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.

Can you provide a whole line solution?

Yes, we can, we can supply SMT line and some LED production lines.

Can we customize the machine?

Of course, all of our machines can be customize.
