Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Weight: | 1700kg | Mounting Speed: | 250000 CPH |
| Feeders: | 68 | Tape Width: | 24mm,8mm,12mm |
| High Light: | CCC LED Assembly Making Machine,LED Assembly Machine With Automatic Feeding,68 Nozzles LED Assembly Machine |
||

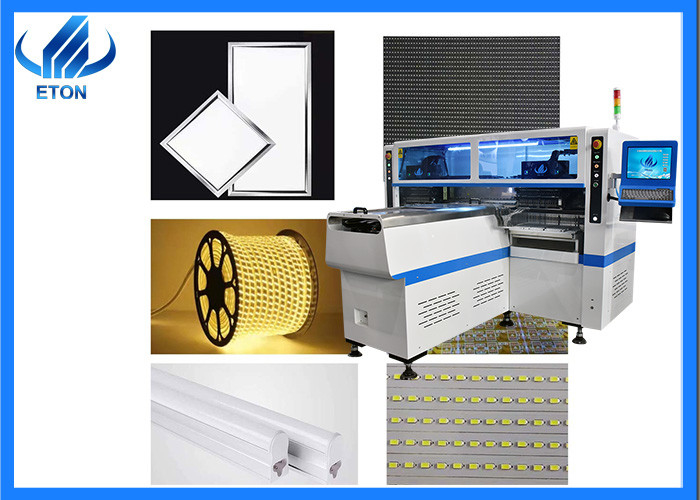

68 heads high speed pick and place machine save cost SMT production line
Features
1. High-end magnetic linear motor + Panasonic Servo Motor
2. 64 heads, 64 feeder stations
3. Group to pick and group to mount
4. Vision alignment, Mark Correction
5. Capacity can Reach 200000 CPH
HT-F9 Main parameters
|
Dimension
|
2700*2300*1550mm
|
|
PCB size
|
Max:1200*330mm Min:100*100mm
|
|
PCB Thickness
|
0.5-5mm
|
|
Mounting Mode
|
Group to take and group to mount
|
|
No. of Camera
|
5 PCS digital camera
|
|
Mounting Speed
|
200000-250000 CPH
|
|
Applicable Components
|
LED 3014/3020/3528/5050,resistor,capacitors,bridge rectifiers
|
|
Feeders Station
|
68PCS
|
|
No. of Nozzles
|
68PCS
|
|
X,Y Axis drive way
|
High-end magnetic linear motor +servo motor
|
SMT Production Line
for the semi-automatic production line, it has five machines: one semi-automatic stencil printer, two conveyors, one pick and place machine, one reflow oven.
semi-automatic stencil printer: leak the solder paste onto the PCB board
pick and place machine: mount the lamp beads or other electronic components to the designed position on the PCB
conveyor: used to transfer the circuit board in the production line
reflow oven: melt the solder paste to make it adhere to the mounting components
WHY choose us?
Shenzhen ETON automation equipment Co., Ltd., founded in 2011, is a manufacturing and process solution provider focusing on the R &D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment.
With strong production capacity, ETON has an industrial park of more than 50000 square meters in Jiangxi Province, 7 buildings, more than 300 employees,supporting OEM & ODM, and the mechanical capacity is more than 50 sets / month
It has its own independent R & D team and more than 30 years of R & D experience.
Exhibition
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
5F creates five-star service for you
Free Warranty: One-year warranty factory service.
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
Q:What is the delivery date?
We will deliver the goods after 30 days’ deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
