Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Weight: | 1700kg | Mounting Speed: | 250000 CPH |
| Feeders: | 68 | Tape Width: | 24mm,8mm,12mm |
| High Light: | LED Tube Light Assembly Machine CE,68 Nozzles LED Light Assembly Machine,Tube Light LED Soldering Machine CCC |
||

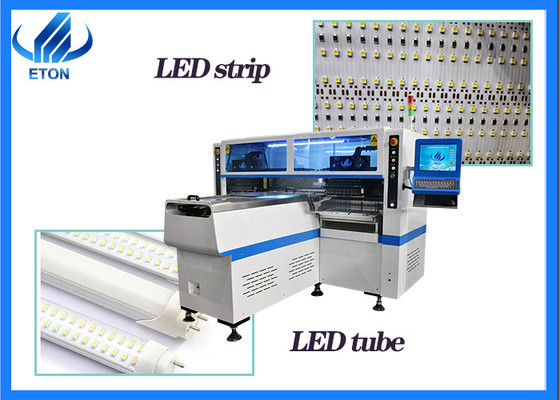

68 heads high speed pick and place machine save cost SMT production line
Features
1. High-end magnetic linear motor + Panasonic Servo Motor
2. 64 heads, 64 feeder stations
3. Group to pick and group to mount
4. Vision alignment, Mark Correction
5. Capacity can Reach 200000 CPH
HT-F9 Main parameters
|
Dimension
|
2700*2300*1550mm
|
|
PCB size
|
Max:1200*330mm Min:100*100mm
|
|
PCB Thickness
|
0.5-5mm
|
|
Mounting Mode
|
Group to take and group to mount
|
|
No. of Camera
|
5 PCS digital camera
|
|
Mounting Speed
|
200000-250000 CPH
|
|
Applicable Components
|
LED 3014/3020/3528/5050,resistor,capacitors,bridge rectifiers
|
|
Feeders Station
|
68PCS
|
|
No. of Nozzles
|
68PCS
|
|
X,Y Axis drive way
|
High-end magnetic linear motor +servo motor
|
SMT Production Line
ETON Company
ETON is an industry and trade integrated company, with 14 years of R&D and production experience in the smt field.
ETON has an industrial park of more than 52,000 square meters in Jiangxi Province, with more than 500 employees and strong manufacturing capacity, We can produce more than 50 machines a month.
Exhibition
ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries.
Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
5F creates five-star service for you
Free Warranty: One-year warranty factory service.
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machines can be customize.
