220V LED Lights Assembly Machine PLC Vacuum Loader Pcb Magazine Loader

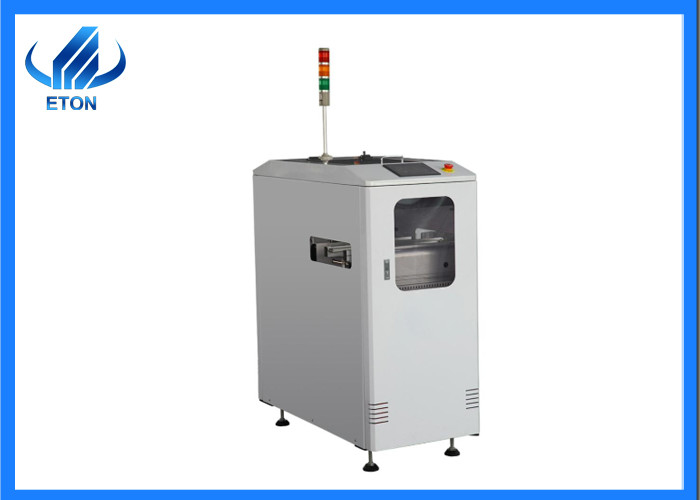

Large Image :  220V LED Lights Assembly Machine PLC Vacuum Loader Pcb Magazine Loader

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CE,CCC,RISR
Model Number: VP460

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB USD 10000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 work days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Vacuum Loader Dimension: (600-1300)*1100*1200 Mm
Software: R&D Independently Warranty: 1 Year
Weight: 210 Kg Condition: New
Power Supply: AC220V 50Hz Application: LED Bulb Assembly Machine
High Light:

220V LED Lights Assembly Machine


220V PLC Vacuum Loader


220V Pcb Magazine Loader

rETON 220V PLC vacuum loader Auto Vacuum Pcb Magazine Loader led lights assembly machine


Application of Vacuum Pcb Magazine Loader

Mounting components:LED,capacitors,resistors,

IC,shaped components,etc.

Application: Power driver,electric board,lens,linear bulb,household appliance etc.


All kinds of LED lamps, LED power drivers, small home appliances circuit boards, digital, toys, control board products and other products



Technical parameter of Vacuum loader

Vacuum loader VP460
Description This equipment is used for the operation of automatically sending circuit boards without parts to the production line
Loading time Around 6s or customer specified
PCB Thickness Minimum 0.6mm
PCB capacity MAX.200 pieces (0.6mm thick)
Power Consumption Single-phase AC110~220V (optional), maximum 200 VA
Air pressure and Air flow 4~6Bar,Up to 30L/min
Specification parameter
PCB size L*W(mm) 80*50-(510-1200)*460
Dimension(L*W*H)(mm) (600-1300)*1100*1200
Approximate Weight(kg) About 210



The features of Vacuum loader
1.Acousto-optic alarm system, text prompt for abnormal information, easy operation and maintenance;

2. Adopt several sets of independent vacuum generation system, stable and reliable adsorption;

3. The device of Loading PCB in the SMT production line.
4. PLC control system, multiple electrical circuit protection design, safe and stable;
5. PLC control, color man-machine interface operation;
6. The board-mounted platform automatically rises and falls, and the speed of loading PCB is fast.
7. Standard SMEMA signal communication mode.



220V LED Lights Assembly Machine PLC Vacuum Loader Pcb Magazine Loader 0


220V LED Lights Assembly Machine PLC Vacuum Loader Pcb Magazine Loader 1


Shipping way
By sea:The most economical and common way
By Air:If you need machinery in an emergency, air freight is also an option
By land or other way:The most suitable transportation method can be selected according to the needs of customers


After sale service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
