| Name: | Pick And Place Machine | Model: | YT202S |
|---|---|---|---|
| Feeders Station: | 64PCS | Heads: | 20 PCS |
| Feeding Way: | Intelligent Double Head Feeder | System: | Windows 7 |
| Software: | R&D By ETON | ||
| High Light: | windows7 LED Bulb Making Machine,20 Head led bulb making machine,linear motor led lights assembly machine |
||

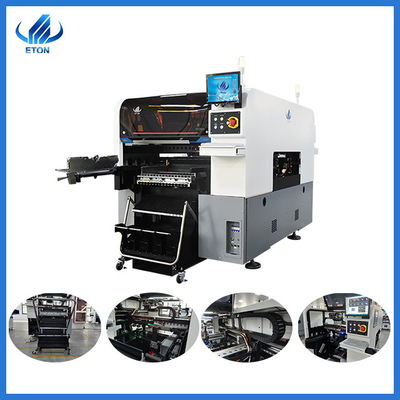

led bulb making machine automatic 20 heads SMT machine led lights assembly machine

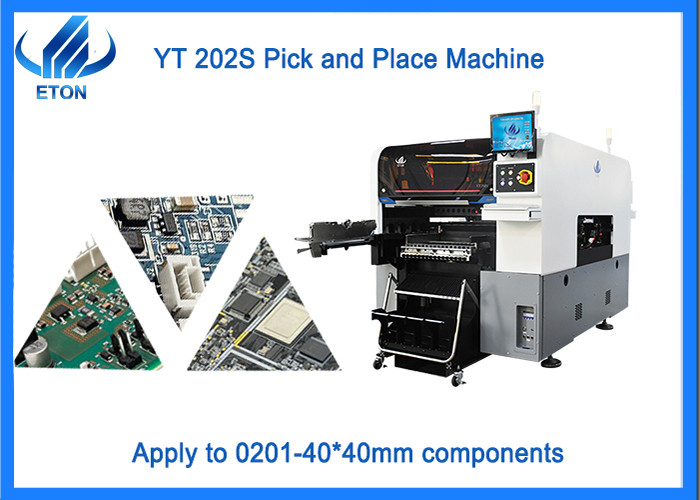

Parameter of YT 202S SMT machine
| model | YT 202S |
| PCB size |
MAX size: 500*450mm(single PCB) 500*300MM(double PCB) MIN size: 50*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| system | Windows 7 |
| software | R&D independently |
| No. Of camera | 4 set (digital camera) |
| Bottom vision camera recognition | |
| Vision alignment+ mark correction | |
| Mounting speed | 80000 CPH(optimum speed) |
| Components range | Min 0201-4040mm tape reel packages and IC tray feeder etc |
| power | 380 AC 50Hz 6KW |
| Air consumption | 0.4-0.6mpa()4-6kgf/cm2) 150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | |
| X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor |
| No. Of feeder station | Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder |
| No. Of heads | Double side: 20 PCS(single side: 10 PCS) |
| Feeding way | Intelligent double head feeder |
Feature of YT202S SMT machine
(1)components:apply to 0201-40*40mm, improve recognition performance size up to 40*40mm, apply to BGA 0R CSP etc.
(2)double module, each module 10 heads, total has 20 heads
(3) each head has independent detection function, which improves the stability of the equipment and the reliability of the product.
(4)the optimum placement speed reach 80000 CPH.
(5)feeding way: docking cart, smart double head tape feeder, IC tray feeder
(6)can mount the same large PCB at the same time, realizing flexible production
The Semi-automatic production line of YT 202S SMT machine
For the semi-automatic line, it will be more cost saving and space,it does not need the automatic line so much equipment, in addition, the semi-automatic line is relatively flexible, and can be carried out at the same time with manual insertion.
