Automatic LED Strip Light Rolling Machine 220V three phase Automatic Assembly Line

Automatic LED Strip Light Rolling Machine 220V three phase Automatic Assembly Line
Automatic LED Strip Light Rolling Machine 220V three phase Automatic Assembly Line

Large Image :  Automatic LED Strip Light Rolling Machine 220V three phase Automatic Assembly Line

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE,CCC
Model Number: ET-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB USD 3600~6000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 work days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Automatic LED Strip Light Rolling Machine Dimension: 1100*660*1000
Warranty: 1 Year Weight: 100kg
Condition: New Power Supply: AC220V 50Hz
Payment: T/T,LC Compatible PCB Material: All LED Soft Strip PCB
PCB Feeding Speed: Adjustable,max. 300mm/s Max. Length Of PCB: No Limited
High Light:

Automatic LED Strip Light Rolling Machine

,

LED Strip Light Automatic Assembly Line

Automatic rolling led lights Led strip rolling and sticking machine led light assembly line led lights manufacturing machine led lights assembly machine led lamp assembly line



led strip light rolling machine introduction


1)The machine may manufacture’s led strip light’s wide range: 0~ 25mm. Assembling 3M double adhesive type and led Strip light
2)The machine may manufacture led strip light type: waterproof, no waterproof, have the PVC cover or not led strip light.
3)The Production capacity is 1000 Meter/per hour on the basis of skillful worker.
4)The efficiency is double than last machine. And save one worker. And easy, fast.
5)The machine’s reel has Clockwise and counterclockwise direction, the aim is that led inside or outside
6)May adjust the manufacturing speed.
7)Operate the machine’s process is very easy, When the strip light is distorted, may use foot to stop it.
8)The efficiency is high and reduce the worker’s repetitive movement.

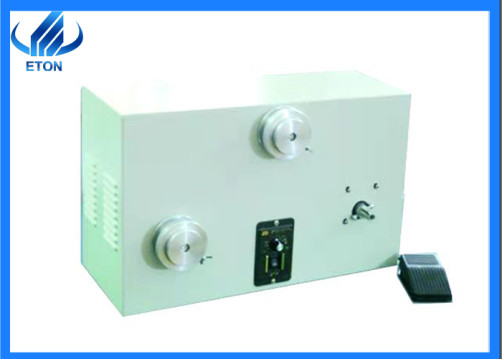

Pictures of LED strip light rolling machine


Automatic LED Strip Light Rolling Machine 220V three phase Automatic Assembly Line 0

Automatic LED Strip Light Rolling Machine 220V three phase Automatic Assembly Line 1





1)May use the structure to adjust the force on the basis of strip light’s width.
2)Fix 3M double adhesive type
3)Adjust speed button
4)Power Switch
5)Fix Reel position, Automatic run.
6)Direction Switch, The direction is clockwise when position, or not will be counterclockwise.
7)220V Power input line, three phase.
8)Foot Switch, Control the machine’s movement or not.



 ETON company




Efficient team: We provide the most systematic solution for you. The best suggestions of full SMT line equipment according to your budget and site.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials .
High quality: We have strictly quality control during all production from raw materials to the finished machine.
High efficiency : All machines parts are made by ourselves, so it’s convenient to control the time schedule and quality timely.



Automatic LED Strip Light Rolling Machine 220V three phase Automatic Assembly Line 2

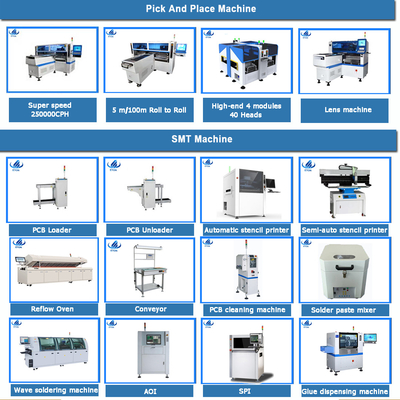

Our Products

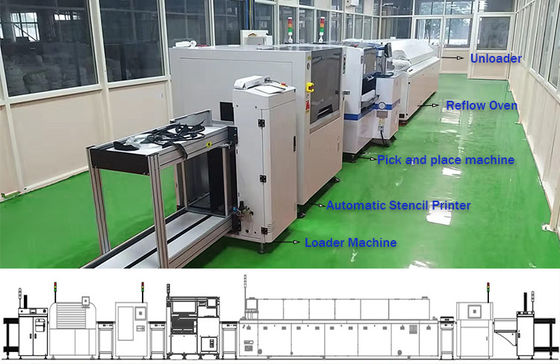

More smt production line equipments
We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.
Below are the suggestion of basic steps for the pick and place progress and equipment :

Main Products: SMT LED Pick and Place Machine,SMT LED Reflow Oven,SMT LED Stencil Printer,SMT Production Line,LED Assembly Line,SMT LED Machine.



Automatic LED Strip Light Rolling Machine 220V three phase Automatic Assembly Line 3





RFQ


1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.



2.What is the delivery date?
We will deliver the goods after 30 days' deposit.


3.What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.



4.What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.



5.This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.



6.How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
