Certification: | ISO9001 | Warranty: | 1 Year |
---|---|---|---|
Power Supply: | 220V | Name: | SMD LED SMT Production Assembly Line |
Weight: | 1700kg | Condition: | New |
After-sales Service Provided: | Video Technical Support,Online Support | Dimension: | 2700*2300*1550mm |
High Light: | LED Lights Assembly Machine 250000 CPH,220V SMT Chip Mounting Machine,Flexible Strip SMT Chip Mounting Machine |
Product description

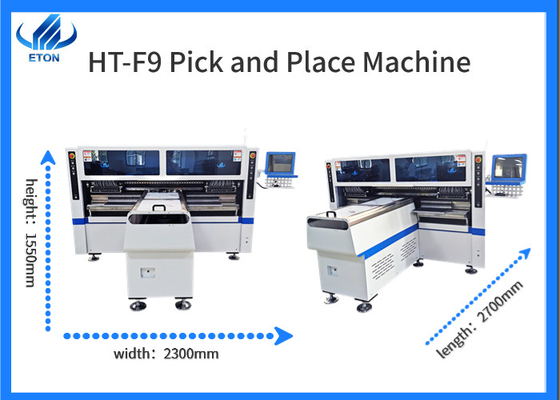

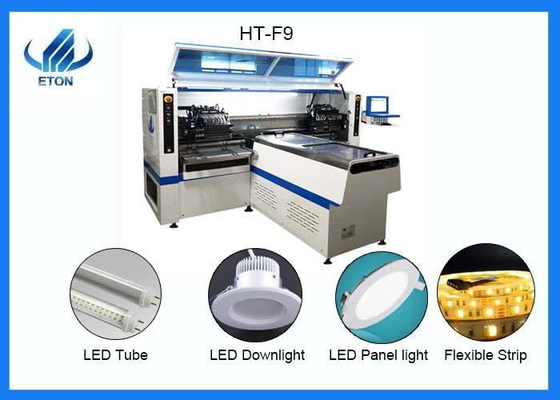

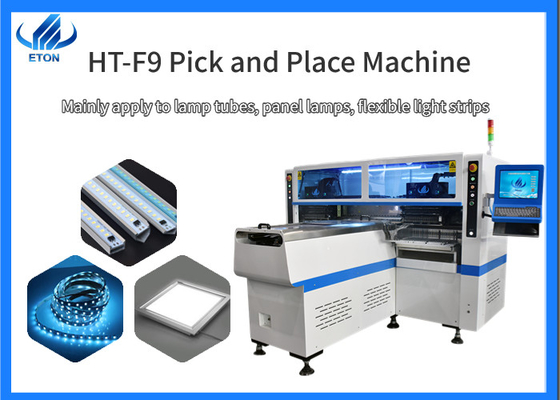

HT-F9,dual arm magnetic linear LED high-speed pick and place machine
1. Exclusive patented technology, group picking and group sticking, saving the time of suction nozzles picking up materials
2. 68 nozzles, 68 feeders, four different materials can be patched at the same time
3. The ideal production capacity can reach 250000CPH
4. X,Y Axis drive by high-end magnetic linear motor and servo motor
Parameter
Product name | pick and place machine |
Model | HT-F9 |
PCB Length&Width | Max:1200*330mm Min:100*100mm |
PCB Thickness | 0.5-5mm |
Software | Window 7 |
Display | LED touch screen monitor |
Repeat Mounting Precision | ±0.02mm (Repeat precision) |
Mounting Height | ≦5mm |
Mounting Speed | 200000~250000 CPH |
Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
Detailed description
The head of the SMT LED machine has two, consisting of four modules, each with 17 suction nozzles. Using the pneumatic principle, the components are sucked through the head pneumatic device.
The head of the SMT LED machine is equipped with a tank chain to wrap the flat wires on the head, ensuring the translation of the wires on the one hand, and reducing the wear and tear of the wires during work on the other hand, extending their service life.
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Our Service
Global Service Office: India·Turkey·Vietnam·Egypt·Pakistan
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
