Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | 100% Original,Brand-new |
| Weight: | 1700kg | Mounting Speed: | 250000 CPH |
| Feeders: | 68 | Tape Width: | 24mm,8mm,12mm |
| High Light: | LED Making Machine with Vision alignment,Group picking LED Making Machine,68 Feeder LED Lights Assembly Machine |
||

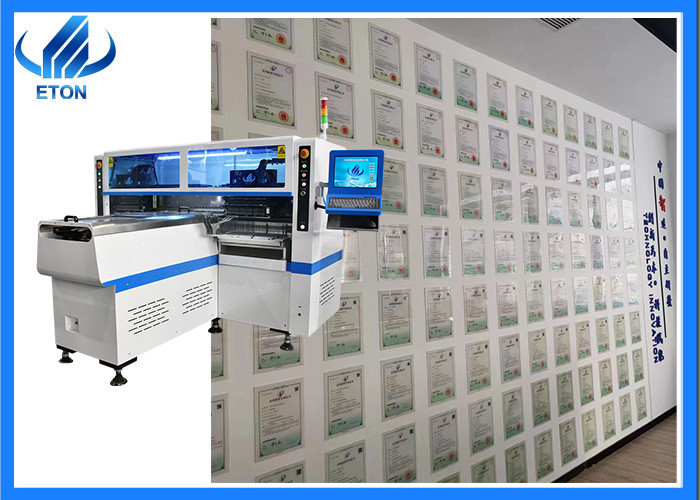

68 heads high speed pick and place machine save cost SMT production line
Features
1. High-end magnetic linear motor + Panasonic Servo Motor
2. 64 heads, 64 feeder stations
3. Group to pick and group to mount
4. Vision alignment, Mark Correction
5. Capacity can Reach 200000 CPH
HT-F9 Main parameters
|
Dimension
|
2700*2300*1550mm
|
|
PCB size
|
Max:1200*330mm Min:100*100mm
|
|
PCB Thickness
|
0.5-5mm
|
|
Mounting Mode
|
Group to take and group to mount
|
|
No. of Camera
|
5 PCS digital camera
|
|
Mounting Speed
|
200000-250000 CPH
|
|
Applicable Components
|
LED 3014/3020/3528/5050,resistor,capacitors,bridge rectifiers
|
|
Feeders Station
|
68PCS
|
|
No. of Nozzles
|
68PCS
|
|
X,Y Axis drive way
|
High-end magnetic linear motor +servo motor
|
Application
HT-F9 is a very high speed pick and place machine. It’s specialized for big quantity production of LED tube light, panel light, strip light.
HT-F9 is for double module, consisting of two modules interact to mount around, each module can be installed nozzle 32, part A or part B can be mounted separately or synchronously.
ETON Company
Shenzhen ETON Automation Equipment Co., Ltd., has devoted itself to researching
SMT placement machine and its peripheral equipment for 14 years. The company
also has a branch in Jiangxi Province. The total area reaches 50,000 square meters
and has the largest industrial park.
Package and Delivery of Pick and Place Machine
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
FAQ
Can you provide a whole line solution?
Yes , we can. We can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machine can be customize.
Do you have oversea after sale service?
Yes, we can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation. If you still have any questions, please contact us by e-mail, wechat, phone, Skype,Whatsapp or other contact information.
How long the delivery?
About 30 days.
